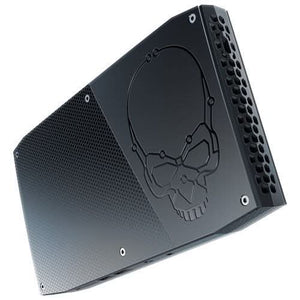

Intel BOXNUC6I7KYK1 Core i7-6770HQ 2.60Ghz DDR4 SDRAM NUC Kit

Specifications

Mfr Part Number:  BOXNUC6I7KYK1

Brand:  Intel

Alt Part Number:  NUC6I7KYK1

Type:  NUC Kit



Technical Description

Brand:  Intel

Model:  BOXNUC6I7KYK1

Processor Type:  2.6 GHz Intel Core i7-6770HQ Quad-Core

Maximum Boost Speed:  3.5 GHz

Cache Memory:  6 MB

Max Memory Supported:  32GB

Memory Type Supported:  DDR4 2133

Onboard Video:  Intel Iris Pro 580

Memory slot:  2 x 260Pin SO-DIMM

Max LAN Speed:  10/100/1000Mbps

Wireless LAN:  Intel Wireless-AC 8260

Bluetooth:  Bluetooth 4.2

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Form Factor:  UCFF

Dimensions:  1.10" x 8.31" x 4.57"



Features

6th generation Intel Core i7-6770HQ processor

Intel Iris Pro Graphics

Two DDR4 SO-DIMM sockets (up to 32GB, 2133 MHz)

Two M.2 slots with flexible support for a 42 or 80 mm SATA or PCIe SSD

Intel Dual Band Wireless-AC 8260 and Bluetooth 4.2

Two USB 3.0 ports (including one charging port)

Intel HD Audio via Headphone/Microphone jack

Consumer infrared sensor

Support for user-replaceable third-party lids

Kensington lock support

Back panel DC power connector (19V)

Combo speaker / TOSLINK audio output

Intel Gigabit LAN

Two USB 3.0 ports on the back panel

One Mini DisplayPort version 1.2 supporting 8 channel digital audio (7.1 surround sound)
