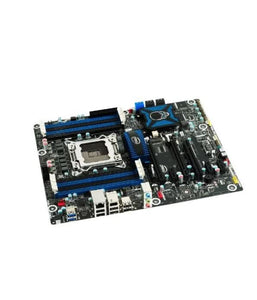

Intel BOXDX79TO Core-I7 Chipset-X79 Express Socket-LGA2011 64Gb DDR3-2400MHz 24-Pin ATX Motherboard

Specifications

Model Number:  BOXDX79TO

Brand:  Intel

Alt Part Number(s) :  DX79TO

Type:  Motherboard



Technical Description

Brand:  Intel

Model :  BOXDX79TO

Socket Type:  LGA 2011

CPU Type:  Core i7 (LGA2011)

Chipset:  Intel X79

Number of Memory Slots:  8×240pin

Memory Standard:  DDR3 2400 (OC)/2133 (OC)/1866 (OC)/1600/1333/1066

Max Memory Supported:  64GB

Channel Supported:  Quad Channel

PCI Express 3.0 x16:  2

PCI Express x1:  3

PCI Slots:  1

SATA 3Gb/s:  4

SATA 6Gb/s:  2 x SATA 6Gb/s

SATA RAID:  0/1/5/10

Onboard Video Chipset:  None

Audio Chipset:  Realtek ALC892

Audio Channels:  6-channel (5.1+2 independent multi-streaming)

LAN Chipset:  Intel 82579L

Max LAN Speed:  10/100/1000Mbps

USB 3.0:  2 x USB 3.0

USB 1.1/2.0:  6 x USB 2.0

IEEE 1394:  1 x IEEE 1394a

Audio Ports:  3 Ports

Onboard USB:  8 x USB 2.0

Onboard 1394:  1 x 1394a

Form Factor:  ATX

Dimensions :  12.0" x 9.6"

Power Pin:  24 Pin



* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
