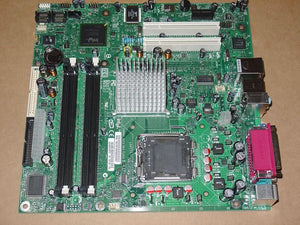

Intel BLKD915GAGL I915G LGA775 SATA Audio Video LAN m-ATX Motherboard : New With IO Shield Only

Price:
$89.00 Regular price
Price:
Sale price$89.00
IntelSKU: 50981
Model Number: BLKD915GAGL
Alt. Part Number: D915GAGL
Condition: New
In stock:  Yes
No reviews

For Volume / Bulk Purchase Discounts Available

Shop with confidence! Saitech Inc is an authorized Intel Partner Reseller.

Learn more by visiting the manufacturer's website.

SPECIAL ORDER

This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.

How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!

Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.

Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!

Realtime Inventory: Live inventory updates are not available for this product.


Description

This is an New Bulk Board with:
2 PCI Slot
1 PCI-Express X1
NO PCI Express x16



The Intel Desktop Board D915GAG supports the latest Intel Pentium 4 processors featuring Hyper-Threading Technology and are designed to optimize a broad range of usage models in the office and at home. This desktop board features Intel High Definition Audio, Fast Ethernet LAN and PCI Express expansion slots. In addition, these desktop boards deliver exceptional platform flexibility with both PCI Express x16 graphics and Intel Graphics Media Accelerator 900, as well as your choice of support for dual-channel DDR 400/333 memory.

BLKD915GAGL Product Overview

Processor & Chipset

  • Chipset Manufacturer:     Intel
  • Chipset Model:     915G
  • Total Processor Supported:     1
  • Processor Technology:     Hyper-Threading Technology
  • Processor Socket:     Socket T LGA-775
  • Processor Supported:     Pentium 4
  • Processor Supported:     Celeron D
  • Processor Supported:     Pentium 4 (Extreme Edition)
  • Front Side Bus:     533 MHz
  • Front Side Bus:     800 MHz

Memory

  • Number of Memory Slots:     4
  • Maximum Memory:     4 GB
  • Memory Standard:     DDR333/PC2700
  • Memory Standard:     DDR400/PC3200
  • Memory Technology:     DDR SDRAM

I/O Controller

  • Controller Type:     Floppy Controller
  • Controller Type:     Serial ATA/150
  • Controller Type:     Ultra ATA/100 (ATA-6)

Video

  • Onboard Video:     On-board Video Chipset
  • Graphics Controller Manufacturer:     Intel
  • Graphics Controller Model:     GMA 900

Audio

  • Sound Controller Manufacturer:     Realtek
  • Sound Controller Model:     ALC860
  • Audio Channels:     5.1

Network & Communication

  • Fast Ethernet:     Yes

I/O Expansions

  • Number of Total Expansion Slots:     4
  • Number of PCI Slots:     2
  • Total Number of PCI Express Slots:     2
  • Number of PCI Express x1 Slots:     1
  • Number of PCI Express x16 Slots:     1

Interfaces/Ports

  • Total Number of USB Ports:     4
  • Number of USB 2.0 Ports:     4
  • Parallel Port:     Yes
  • Serial Port:     Yes
  • Audio Line In:     Yes
  • Audio Line Out:     Yes
  • Microphone Port:     Yes
  • VGA:     Yes
  • Network (RJ-45):     Yes

Onboard Interfaces

  • Number of IDE Interfaces:     1
  • Number of SATA Interfaces:     4
  • Total Number of Onboard USB Ports:     2
  • Onboard LEDs Header:     Yes
  • Onboard Audio Header:     Yes

Power Description

  • Power Supply Supported:     ATX12V

Physical Characteristics

  • Width:     9.6"
  • Depth:     9.6"

Miscellaneous

  • Package Contents:
    • D915GAG Desktop Board
    • ATX 2.01 compliant I/O shield
  • Additional Information:

    Intel 915G Express Chipset:

    • Intel 82915G Graphics Memory Controller Hub (GMCH)
    • Intel 82801FB I/O Controller Hub (ICH6)

    System BIOS:

    • IDE drive auto-configure, multilingual support

    Intel Graphics Media Accelerator 900:

    • Low-cost, high-performance graphics solution

    Intel High Definition Audio:

    • Flexible 6-channel audio with jack sensing
    • High-quality integrated audio that rivals the performance of high-end discrete solutions

    Intel Precision Cooling Technology:

    • Advanced management ASIC supports temperature-based fan control
    • Automatically adjusts the processor fan speed based on the processor temperature and adjusts the chassis fan speeds depending on the system temperature
    • System fan noise may be reduced by operating controlled chassis and processor fans at the minimum necessary speeds
  • Certifications & Standards:

    Safety Regulations:

    • UL 1950, Third edition - CAN/CSA C22.2 No. 950-95 (U.S. and Canada)
    • Nemko certified to EN 60950 (Europe)
    • Nemko certified to IEC 60950 (International)

    EMC regulations:(tested in representative chassis)

    • FCC Part 15, Class B (U.S.)
    • FCC Part 15, Class B open-chassis (cover off) testing (U.S.)
    • ICES-003, Class B (Canada)
    • EMC directive 89/336/EEC; EN 55022:1998, Class B; EN 55024:1998 (Europe)
    • AS/NZS 3548, Class B (Australia/New Zealand)
    • CNS 13438, Class B (Taiwan)
    • CISPR 22:1997, Class B (International)

    Note:

    • Power requirements vary
    • Complies with US CRF via EN55022 +6 db in system configurations with an open chassis and EU Directive 89/336/EEC and use via EN55022 and EN50082-1 in a representative chassis

Warranty

  • Limited Warranty:     3 Year
