Description

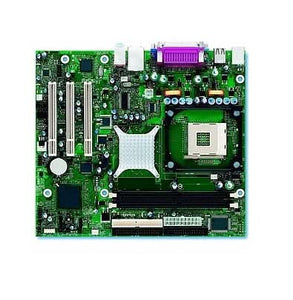

The Intel Desktop Board D865GVHZ delivers an integrated graphics solution with essential features designed to support the Intel Pentium 4 Processor and Intel Celeron processor in the mPGA478-pin package. The Intel Desktop Board D865GVHZ was designed with a focus on reducing overall platform cost. Features such as the Intel 865GV chipset with Intel Extreme Graphics 2 and support for up to 2 GB of DDR400/333 SDRAM memory, onboard Intel PRO 10/100 LAN Network Connection, and AC'97 audio provide the essential building blocks for the value-oriented customer to use on a low-cost platform. As you have come to expect, this product delivers the stability and reliability associated with all Intel desktop boards.
Processor & Chipset
- Chipset Manufacturer: Intel
- Chipset Model: 865GV
- Total Processor Supported: 1
- Processor Technology: Hyper-Threading Technology
- Processor Socket: Socket PGA-478
- Processor Supported: Pentium 4
- Processor Supported: Pentium 4 (Extreme Edition)
- Processor Supported: Celeron
- Processor Supported: Celeron D
- Front Side Bus: 533 MHz
- Front Side Bus: 400 MHz
- Front Side Bus: 800 MHz
Memory
- Number of Memory Slots: 2
- Maximum Memory: 2 GB
- Memory Standard: DDR400/PC3200
- Memory Standard: DDR266/PC2100
- Memory Standard: DDR333/PC2700
- Memory Technology: DDR SDRAM
I/O Controller
- Controller Type: Ultra ATA/100 (ATA-6)
- Controller Type: Floppy Controller
- Controller Type: Serial ATA/150
Video
- Onboard Video: On-board Video Chipset
- Graphics Controller Manufacturer: Intel
- Graphics Controller Model: 865G
Audio
- Sound Controller Manufacturer: Realtek
- Sound Controller Model: ALC202A
- Audio Channels: 2.0
Network & Communication
- Fast Ethernet: Yes
I/O Expansions
- Number of Total Expansion Slots: 3
- Number of PCI Slots: 3
Interfaces/Ports
- Total Number of USB Ports: 4
- Number of USB 2.0 Ports: 4
- Parallel Port: Yes
- Serial Port: Yes
- VGA: Yes
- Network (RJ-45): Yes
Onboard Interfaces
- Number of IDE Interfaces: 2
- Number of SATA Interfaces: 2
- Total Number of Onboard USB Ports: 2
- Onboard LEDs Header: Yes
- Onboard Audio Header: Yes
Power Description
- Power Supply Supported: SFX12V
- Power Supply Supported: ATX12V
Physical Characteristics
- Width: 9.6"
- Depth: 8.5"
-
Intel Express Installer CD, including:
- Intel Active Monitor
- Norton Internet Security
- Farstone RestoreIT! Lite
- InterVideo WinDVD
- Recorder Silver
- Diskeeper Lite
- NTI CD-Maker
- Real One Player
- Software Drivers with Web updates
- Desktop Board Product Guide
- Additional Information:
- Support for the Intel Pentium 4 processor featuring Hyper-Threading Technology
- Intel 82801EB I/O Controller Hub (ICH5) with Accelerated Hub Architecture bus
- PCI request-grant pairs for support of three PCI bus masters
-
Intel Precision Cooling Technology:
- Advanced management ASIC supports temperature-based fan speed control. Fan speeds adjust real time according to system temperatures to help reduce unnecessary noise and energy consumption.
-
Intel Rapid BIOS Boot:
- Accelerates Power-On Self Test (POST) for faster system access.
-
Instantly-Available PC (suspend-to-RAM):
- Enables advanced power savings (not pictured).
-
Operating System Support:
- Microsoft Windows XP
- Windows ME
- Windows 2000
- Windows 98 SE
- Certifications & Standards:
- U.S: FCC Part 15, Class B
- U.S: FCC Part 15, Class B open-chassis (cover off) testing
- Canada: ICES-003, Class B
- Europe: EMC directive 89/336/EEC; EN 55022:1998 Class B; EN 55024:1998
- Australia/New Zealand: AS/NZS 3548, Class B
- Taiwan: CNS 13438, Class B
- International: CISPR 22:1997, Class
