Description

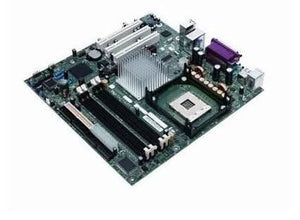

Prepare for the future with the Intel Desktop Board D865GLCLK, a platform that is truly a generation ahead. This micro-ATX board features next-generation processor and dual-channel DDR400 memory support, Intel Extreme Graphics 2, an AGP 8X slot, 8 USB 2.0 ports, integrated 6-channel audio, a Gigabit Ethernet connection, and next-generation storage device support.
Processor & Chipset
- Chipset Manufacturer: Intel
- Chipset Model: 865G
- Total Processor Supported: 1
- Processor Technology: Hyper-Threading Technology
- Processor Socket: Socket PGA-478
- Processor Supported: Pentium 4
- Processor Supported: Celeron
- Front Side Bus: 400 MHz
- Front Side Bus: 533 MHz
- Front Side Bus: 800 MHz
Memory
- Number of Memory Slots: 4
- Maximum Memory: 4 GB
- Memory Standard: DDR400/PC3200
- Memory Standard: DDR333/PC2700
- Memory Standard: DDR266/PC2100
- Memory Technology: DDR SDRAM
I/O Controller
- Controller Type: Floppy Controller
- Controller Type: Serial ATA/150
- Controller Type: Ultra ATA/100 (ATA-6)
Video
- Onboard Video: On-board Video Chipset
- Graphics Controller Manufacturer: Intel
- Graphics Controller Model: Extreme Graphics 2
- Graphics Controller Memory: 64 MB
Audio
- Sound Controller Manufacturer: Analog Devices
- Sound Controller Model: AD1985
- Audio Channels: 5.1
Network & Communication
- Gigabit Ethernet: Yes
I/O Expansions
- Number of Total Expansion Slots: 4
- Number of PCI Slots: 3
- Number of AGP Slots: 1
Interfaces/Ports
- Total Number of USB Ports: 4
- Number of USB 2.0 Ports: 4
- Parallel Port: Yes
- Serial Port: Yes
- Audio Line In: Yes
- Audio Line Out: Yes
- Microphone Port: Yes
- VGA: Yes
- Network (RJ-45): Yes
Onboard Interfaces
- Number of IDE Interfaces: 2
- Number of SATA Interfaces: 2
- Onboard LEDs Header: Yes
Power Description
- Power Supply Supported: ATX12V
- Power Supply Supported: SFX12V
- Power Supply Supported: TFX12V
Physical Characteristics
- Width: 9.6"
- Depth: 9.6"
Miscellaneous
- Package Contents:
- Desktop Board
- ATX and MicroATX compliant I/O shield
- Floppy, SATA and IDE cables
- Board and back-panel I/O layout stickers
- Quick Start Guide
- Intel Express Installer CD, including:
-
- Norton Internet Security
- Intel Active Monitor
- SoundMAX 4 XL
- RealOne Player
- NTI CD-Maker
- Diskeeper Lite
- WinDVR Lite
- Sonic Focus
- RestoreIT! Lite
- Software Drivers, with easy Web updates
- Product Guide
- Additional Information:
- Intel Rapid BIOS Boot and optimized POST for fast access to PC from power-on
- SoundMAX 4 XL with AudioESP audio subsystem with jack sensing
- Integrated retention mechanism for video
- Sleep/Wake Up features like Suspend to RAM (STR), wake on LAN (WOL), wake on PCI device
- Support for system wake-up using an add-in network interface card with remote wake-up capability or integrated LAN
- Three Back panel analog audio Line-out connectors includes Front left and right out, Center and Low Frequency Effects (LFE) out, and Rear left and right out
-
Caution:
- Remove the AGP video card before installing or upgrading memory to avoid interference with the memory retention mechanism.
- Certifications & Standards:
- UL 60950, 3rd Edition, 2000/CSA C22.2 No. 60950-00
- EN 60950:2000
- IEC 60950, 3rd Edition, 1999
- FCC (Class B)
- ICES-003 (Class B)
- EN55022: 1998 (Class B)
- EN55024: 1998
- AS/NZS 3548 (Class B)
- CISPR 22, 3rd Edition (Class B)
- CISPR 24: 1997
