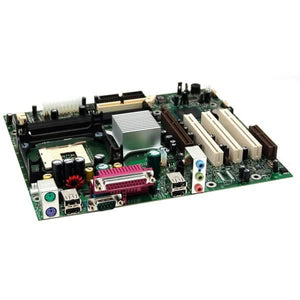

Intel BOXD845EPT2 I845E Socket-478 UDMA100 DDR Audio Micro-ATX Desktop Motherboard: New Retail
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
The Intel® Desktop Board D845EPT2 supports a single Pentium® 4 processor with a system bus frequency of 400 MHz or 533 MHz. The Intel Desktop Board D845EPT2 also supports a single Intel® Celeron® processor with a system bus frequency of 400 MHz.
- Chipset Manufacturer: Intel
- Chipset Model: 845E
- Total Processor Supported: 1
- Processor Socket: Socket M mPGA-478
- Processor Supported: Pentium 4
- Processor Supported: Celeron
- Front Side Bus: 533 MHz
- Front Side Bus: 400 MHz
- 64-bit Processing: Yes
Processor & Chipset
- Number of Memory Slots: 2
- Memory Form Factor: DIMM
- Maximum Memory: 2 GB
- Memory Standard: DDR266/PC2100
- Memory Standard: DDR200/PC1600
- Memory Technology: DDR SDRAM
Memory
- Controller Type: Ultra ATA/66 (ATA-5)
- Controller Type: Ultra ATA/100 (ATA-6)
- Controller Type: Floppy Controller
I/O Controller
- Onboard Video: No
Video
- Sound Controller Manufacturer: Realtek
- Sound Controller Model: AC'97
Audio
- Number of Total Expansion Slots: 3
- Number of PCI Slots: 3
- Number of CNR Slots: 1
I/O Expansions
- Total Number of USB Ports: 4
- Number of USB 2.0 Ports: 4
- Parallel Port: Yes
- Serial Port: Yes
- Audio Line In: Yes
- Audio Line Out: Yes
- Microphone Port: Yes
- PS/2 Port: Yes
- Number of PS/2 Ports: 2
Interfaces/Ports
- Number of IDE Interfaces: 2
- Total Number of Onboard USB Ports: 2
- Number of Onboard USB 2.0 Ports: 2
- Onboard Serial Header: Yes
- Onboard LEDs Header: Yes
Onboard Interfaces
- Form Factor: Micro ATX
- Width: 9.6"
- Depth: 8.2"
Physical Characteristics
- Limited Warranty: 3 Year
Warranty
