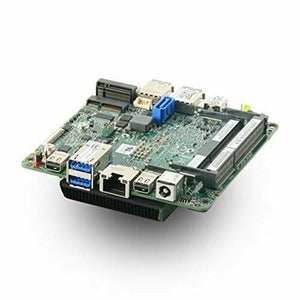

Intel BLKNUC5I3MYBE Core i3-5010U DDR3-1600MHz Ultra Compact NUC Motherboard

Specifications

Model Number:  BLKNUC5I3MYBE

Brand:  Intel

Model:  BLKNUC5I3MYBE

Product Type:  NUC Motherboard

NOTE:  Board Only



Technical Description

Brand:  Intel

Model:  BLKNUC5I3MYBE

Board Form Factor:  UCFF (4" x 4")

Socket:  Soldered-down BGA

Internal Drive Form Factor:  M.2 and 2.5" Drive

Total Internal Drives Supported:  2

Embedded Options Available:  Yes

TDP:  15 W

DC Input Voltage Supported:  12-19 VDC

Processor Included:  Intel® Core™ i3-5010U Processor (3M Cache, 2.10 GHz)

Max Memory Size (dependent on memory type):  16 GB

Memory Types:  DDR3L-1333/1600 1.35V SO-DIMM, Dual-Channel, 25.6 GB/s, Non-ECC

Integrated Graphics:  Yes

Graphics Output:  2x mDP, 1x eDP

Total Displays Supported:  3

PCI Express Revision:  Gen 2

PCI Express Configurations:  M.2 slot with PCIe X2 lanes + HS Custom Solutions Header with PCIe x4 lanes

USB Revision:  USB 3.0, USB 2.0

USB Ports:  6

USB 2.0 Configuration (External + Internal):  0 + 2

USB 3.0 Configuration (External + Internal):  4 + 0

Total SATA Ports:  1

Total SATA 6.0 Gb/s Ports:  1

RAID Configuration:  2.5" SSD + M.2 SATA SSD (RAID-0 RAID-1)

Serial Port via Internal Header:  Yes

Audio (back channel + front channel):  Front panel headset jack

Integrated LAN:  10/100/1000Mbps

Note:  NUC Motherboard Only (Accessories Not Included)
