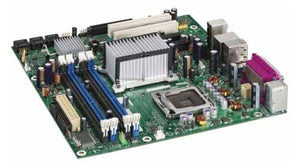

Intel BLKDQ965GFEKR Chip-Intel Q965 Express S-775 8GB DDR2 IDE/SATA A/V/L Micro ATX Motherboard(Bare Board)

Specifications

Model Number:  BLKDQ965GFEKR

Brand:  Intel

Alt Part Number(s):  DQ965GFEKR

Type:  Motherboard

Note:  Bare Board (No Accessories included)

Technical Description

Brand:  Intel

Model:  BLKDQ965GFEKR

Socket Type:  LGA 775

CPU Type:  Core 2 Duo / Pentium D / Celeron D

FSB:  1066/800MHz

Supported CPU Technologies:  Hyper-Threading Technology

Chipset:  Intel Q965 Express, Intel ICH8DO

Number of Memory Slots:  4×240pin

Memory Standard:  DDR2 800

Max Memory Supported:  8GB

Channel Supported:  Dual Channel

PCI Express x16:  1

PCI Express x1:  1

PCI Slots:  2

Video Chipset:  Intel GMA 3000

Audio Chipset:  SigmaTel STAC9227

Audio Channels:  6 Channels

LAN Chipset:  Intel 82566DM

Max LAN Speed:  10/100/1000Mbps

PS/2:  2

LPT:  1

USB 1.1/2.0:  6 x USB 2.0

IEEE 1394:  1 x IEEE 1394a

Audio Ports:  3 Ports

Onboard USB:  2 x USB 2.0 connectors support 4 ports

Onboard 1394:  1 x 1394a connector supports 1 port

Windows Vista:  Certified for Windows Vista

Power Pin:  24 Pin

Form Factor:  Micro ATX

Dimensions:  9.6" x 9.6"



Features

Notice: Only DDR2-800 memory supporting JEDEC approved 1.8V operation with timings of 5-5-5 or 6-6-6 is supported on Intel Desktop Boards based on Intel 965 Express Chipsets.
