Description

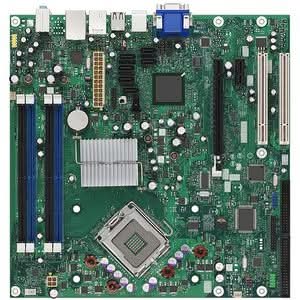

The Intel Desktop Board DQ965CO Executive Series in the microBTX form factor delivers valuable new capabilities for large and small businesses. With support for dual-core processors and Intel vPro technology, this desktop board merges the energy-efficient power of the Intel Core 2 Duo processor with enhanced manageability, data protection and security capabilities.
- Chipset Manufacturer: Intel
- Chipset Model: Q965 Express
- Total Processor Supported: 1
- Processor Technology: vPro Technology
- Processor Socket: Socket T LGA-775
- Processor Supported: Core 2 Duo
- Processor Supported: Pentium D
- Processor Supported: Pentium 4
- Processor Supported: Celeron D
- Front Side Bus: 533 MHz
- Front Side Bus: 800 MHz
- Front Side Bus: 1066 MHz
Processor & Chipset
- Number of Memory Slots: 4
- Maximum Memory: 8 GB
- Memory Standard: DDR2-533/PC2-4200
- Memory Standard: DDR2-667/PC2-5300
- Memory Standard: DDR2-800/PC2-6400
- Memory Technology: DDR2 SDRAM
Memory
- Controller Type: Floppy Controller
- Controller Type: Serial ATA/300
- Controller Type: Ultra ATA/133 (ATA-7)
I/O Controller
- Onboard Video: On-board Video Chipset
- Graphics Controller Manufacturer: Intel
- Graphics Controller Model: GMA 3000
Video
- Sound Controller Manufacturer: SigmaTel
- Sound Controller Model: STAC9227
- Audio Channels: 5.1
Audio
- Gigabit Ethernet: Yes
Network & Communication
- Number of Total Expansion Slots: 4
- Number of PCI Slots: 2
- Total Number of PCI Express Slots: 2
- Number of PCI Express x1 Slots: 1
- Number of PCI Express x16 Slots: 1
I/O Expansions
- Total Number of USB Ports: 6
- Total Number of FireWire/i.LINK Ports: 1
- Audio Line In: Yes
- Audio Line Out: Yes
- Microphone Port: Yes
- VGA: Yes
- DVI: Yes
- Number of DVI Outputs: 1
- Network (RJ-45): Yes
Interfaces/Ports
- Number of IDE Interfaces: 1
- Number of SATA Interfaces: 6
- Total Number of Onboard USB Ports: 2
- Total Number of Onboard FireWire/i.LINK Ports: 1
- Onboard LEDs Header: Yes
- Onboard Audio Header: Yes
Onboard Interfaces
- Width: 10.4"
- Depth: 10.5"
Physical Characteristics
- Package Contents:
- 10 x Desktop Board DQ965CO
- 10 x Cable ATA 66/100
- 10 x Cable IDE
- 10 x Cable Floppy
- 20 x Cable Serial ATA
- 10 x CD Express Installer
- 10 x CD Executive Series Software
- 10 x Configuration Label
- 10 x Diskette, SATA RAID Driver
- 10 x I/O Shield
- 1 x Quick Reference Guide
- 10 x Quick Reference Guide for TPM
- 10 x VGA Port Cover
- Additional Information:
- High Definition Audio header
- Remote thermal sensor
- Chassis intrusion header
- Serial port header
- Parallel port header
- Processor core power connector
- Processor fan header
- Rear chassis fan header
- Intel BIOS (resident in the SPI Flash device)
- Support for Advanced Configuration and Power Interface (ACPI)
- Plug and Play
- SMBIOS
- Intel Quiet System Technology implemented through the ICH8 Manageability Engine
- Voltage sense to detect out of range power supply voltages
- Thermal sense to detect out of range thermal values
- Three fan headers
- Three fan sense inputs used to monitor fan activity
Miscellaneous
BIOS Features:
Hardware Monitor Subsystem:
- Limited Warranty: 3 Year
