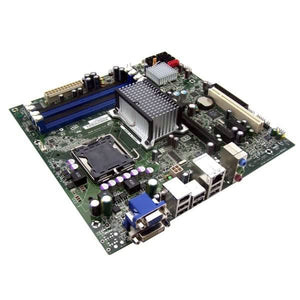

Intel BLKDQ35JOE Chipset-Intel Q35 Socket-LGA 775 8Gb DDR2-800MHz 24-Pin Micro-ATX Bare Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Specifications
Model Number: BLKDQ35JOE
Brand: Intel
Alt Part Number(s): DQ35JOE
Type: Motherboard
Note: New Board Only (Accessory Not Included)
Technical Description
Brand: Intel
Model: BLKDQ35JOE
Socket Type: LGA 775
CPU Type: Core 2 Quad / Core 2 Duo / Pentium D / Celeron
Chipset: Intel Q35, Intel ICH9DO
Memory Slots: 4×240pin
Memory Standard: DDR2 800
Max Memory Supported: 8GB
Channel Supported: Dual Channel
PCI Express x16: 1
PCI Express x1: 2
PCI Slots: 1
Power Pin: 24 Pin
PATA: 1 x ATA100 2 Dev. Max
SATA: 3Gb/s
Onboard Video Chipset: Intel GMA 3100
Audio Chipset: Realtek ALC268
Audio Channels: 4 Channels
LAN Chipset: Intel 82566DM
Max LAN Speed: 10/100/1000Mbps
Video Ports: D-Sub + DVI
USB 1.1/2.0: 6 x USB 2.0
IEEE 1394: 1 x IEEE 1394a
Audio Ports: 3 Ports
Onboard USB: 6 x USB 2.0
Form Factor: Micro ATX
Dimensions: 9.6" x 9.6"
*
