Description

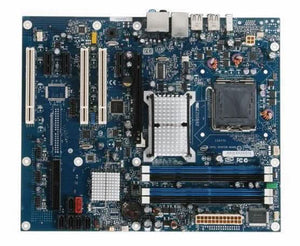

DP35DP Desktop Board in the ATX form factor delivers improved performance and capabilities for multimedia creation and enjoyment. With support for Intel quad-core processors and Intel Viiv processor technology, this desktop board merges the energy-efficient power of the Intel Core 2 Quad processor with enhanced expandability, and consumer electronics integration.
Processor & Chipset
- Chipset Manufacturer: Intel
- Chipset Model: P35 Express
- Total Processor Supported: 1
- Processor Technology: Viiv Technology
- Processor Socket: Socket T LGA-775
- Processor Supported: Core 2 Quad
- Processor Supported: Core 2 Duo
- Processor Supported: Celeron
- Front Side Bus: 1333 MHz
- Front Side Bus: 1066 MHz
- Front Side Bus: 800 MHz
Memory
- Number of Memory Slots: 4
- Maximum Memory: 8 GB
- Memory Standard: DDR2-800/PC2-6400
- Memory Standard: DDR2-667/PC2-5300
- Memory Technology: DDR2 SDRAM
I/O Controller
- Controller Type: Floppy Controller
- Controller Type: Serial ATA/300
- Controller Type: Ultra ATA/133 (ATA-7)
Audio
- Sound Controller Manufacturer: Intel
- Sound Controller Model: 82801IR
- Audio Channels: 7.1
Network & Communication
- Gigabit Ethernet: Yes
I/O Expansions
- Number of Total Expansion Slots: 7
- Number of PCI Slots: 3
- Total Number of PCI Express Slots: 4
- Number of PCI Express x1 Slots: 3
- Number of PCI Express x16 Slots: 1
Interfaces/Ports
- Total Number of USB Ports: 6
- Number of USB 2.0 Ports: 6
- Total Number of FireWire/i.LINK Ports: 1
- Number of FireWire/i.LINK 400 Ports: 1
- Audio Line In: Yes
- Audio Line Out: Yes
- Microphone Port: Yes
- S/PDIF: Yes
- Number of S/PDIF Out Ports: 1
- Network (RJ-45): Yes
Onboard Interfaces
- Number of IDE Interfaces: 1
- Number of SATA Interfaces: 6
- Total Number of Onboard USB Ports: 3
- Onboard LEDs Header: Yes
- Onboard Audio Header: Yes
Physical Characteristics
- Form Factor: ATX
- Width: 12.0"
- Depth: 9.6"
Miscellaneous
- Package Contents:
- 10 x DP35DP Desktop Board
- 10 x Cable, ATA 66/100 IDE
- 20 x Cable, Serial ATA
- 10 x External SATA (eSATA) Port adapter bracket
- 10 x Intel Express Installer driver DVD-ROM
- 10 x Configuration Label
- 10 x I/O Shield
- 10 x Intel Matrix Storage RAID driver diskette
- 1 x Quick Reference Poster
- 10 x Intel Viiv Technology Poster
-
Additional Information:
Microsoft Vista Premium Ready
Chipsets:
- Northbridge: Intel P35 Express
- Southbridge: Intel ICH9R
-
BIOS Features:
- Intel BIOS (resident in the SPI Flash device)
- Advanced Configuration and Power Interface (ACPI)
- Plug and Play
- SMBIOS
-
Instantly Available PC Technology:
- Support for PCI Local Bus Specification Revision 2.3
- Support for PCI Express Revision 1.0a
- Suspend to RAM support
- Wake on PCI, RS-232, front panel, PS/2 devices, USB ports, LAN, and CIR
-
Hardware Monitoring and Fan Control:
- Intel Quiet System Technology, delivering acoustically-optimized thermal management
- Fan speed control controllers and sensors integrated into the ICH9R
- Thermal sensors in the processor, 82P35 MCH, and 82801IR ICH9R
- Power supply monitoring of five voltages (+5 V, +12 V, +3.3 VSB, +1.25 V, and +VCCP) to detect levels above or below acceptable values
- Thermally monitored closed-loop fan control, for all three fans, that can adjust the fan speed or switch the fans on or off as needed
-
Power Management:
- Software support through Advanced Configuration and Power Interface (ACPI)
- Hardware support:
-
- Power connector
- Fan headers
- LAN wake capabilities
- Instantly Available PC technology
- Wake from USB
- Power Management Event signal (PME£) wake-up support
- Wake from Consumer IR
