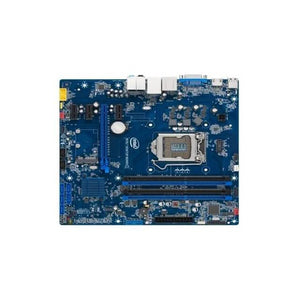

Intel BOXDH87RL Chipset-H87 Express Socket-LGA1150 32Gb DDR3-1600MHz Micro ATX Motherboard

Specifications

Model Number:  BOXDH87RL

Brand:  Intel

Alt Part Number(s):  DH87RL

Product Type:  Motherboard

Note:  New Open Box Motherboard With Accessories



Technical Description

Brand:  Intel

Model:  BOXDH87RL

Board Form Factor:  Micro ATX

Socket:  LGA1150

Embedded Options Available:  No

TDP:  95 W

Memory Type:  Max. 32GB, DDR3 1333/1600, Dual-Channels. 4-DIMMs, Non-ECC

Integrated Graphics:  Yes

Graphics Output:  DVI-I, HDMI, DisplayPort* v1.2

Displays Supported:  3

Discrete Graphics:  PCIe 3.0 x16

Requires a Processor with Intel Graphics Technology:  Yes

PCIe x16 Gen 3:  1

PCIe x1 Gen 2.x:  3

PCIe Mini Card Slot (Full Length):  1

USB Ports:  14

USB 2.0 Configuration (External + Internal):  2 + 6

USB 3.0 Configuration (External + Internal):  4 + 2

Total SATA Ports:  6

Max SATA 6.0 Gb/s Ports:  6

RAID Configuration:  0,1,5,10

Audio (back channel + front channel):  8 + 2

Integrated LAN:  10/100/1000 Mbps

Consumer Infrared Rx Sensor:  Yes

S/PDIF Out Connector:  1

Max CPU Configuration:  1



Advanced Technologies

Intel HD Audio Technology

Intel Matrix Storage Technology

Intel Rapid Storage Technology
