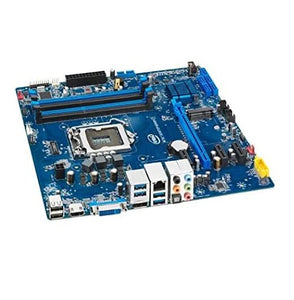

Intel BLKDH87RL LGA-1150 PCIe 3.0 x16 DDR3-1600MHz Micro-ATX Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Specifications
Model Number: BLKDH87RL
Brand: Intel
Alternate Part Number: DH87RL
Product Type: Motherboard
Technical Description
Brand: Intel
Model: BLKDH87RL
Board Form Factor: Micro ATX
Socket: LGA1150
Memory Type: Max. 32GB, DDR3 1333/1600, Dual-Channels. 4-DIMMs, Non-ECC
Graphics Output: DVI-I, HDMI, DisplayPort* v1.2
Displays Supported: 3
Discrete Graphics: PCIe 3.0 x16
PCIe x16 Gen 3: 1
PCIe x1 Gen 2.x: 3
PCIe Mini Card Slot (Full Length): 1
USB Ports: 14
USB 2.0 Configuration (External + Internal): 2 + 6
USB 3.0 Configuration (External + Internal): 4 + 2
Total SATA Ports: 6
Max SATA 6.0 Gb/s Ports: 6
RAID Configuration: 0,1,5,10
Audio (back channel + front channel): 8 + 2
Integrated LAN: 10/100/1000 Mbps
Consumer Infrared Rx Sensor: Yes
TDP: 95W
*
