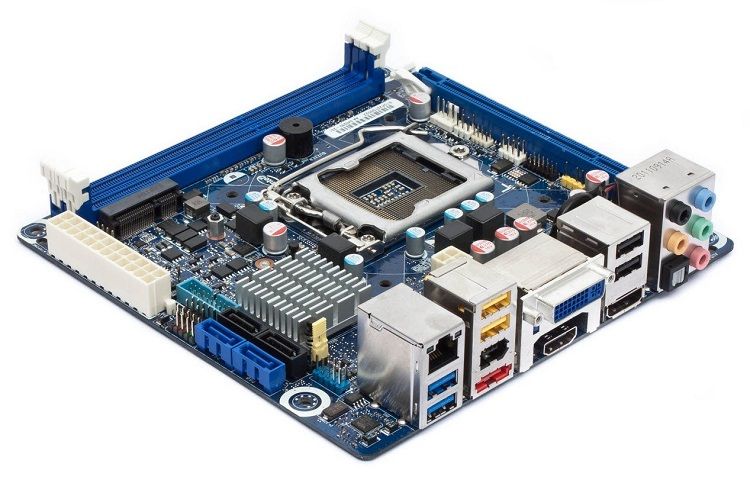

Intel BLKDH77DF Chipset-H77 LGA1155 16Gb DDR3-1600MHz 24-Pin Mini ITX Motherboard

Specifications

Model Number:  BLKDH77DF

Brand:  Intel

Alt Part Number(s):  DH77DF

Type:  Motherboard



Technical Description

Brand:  Intel

Model:  BLKDH77DF

Socket Type:  LGA 1155

CPU Type:  Core i7 / i5 / i3 (LGA1155)

Chipsets:  Intel H77

Memory Slots:  2×240pin

Memory Standard:  DDR3 1600/1333/1066

Max Memory Supported:  16GB

Channel Supported:  Dual Channel

PCI Express 3.0 x16:  1

Mini Card Slots:  1 x PCI Express Full-/Half-Mini Card slot with support for mSATA

SATA 3Gb/s:  2

SATA 6Gb/s:  2 x SATA 6Gb/s

Video Chipset:  Supported only by CPU with integrated graphic

Audio Chipset:  Realtek ALC898

Audio Channels:  8 Channels

LAN Chipset:  Intel 82579V

Max LAN Speed:  10/100/1000Mbps

Video Ports:  DVI

Power Pin:  24 Pin

DisplayPort:  1 x DisplayPort

USB 1.1/2.0:  4 x USB 2.0

USB 3.0:  2 x USB 3.0

eSATA:  1 x eSATA 3Gb/s

S/PDIF Out:  1 x Optical

Audio Ports:  5 Ports

Onboard 1394:  1 x 1394a

Form Factor :  Mini ITX

Dimensions:  6.7" x 6.7"
