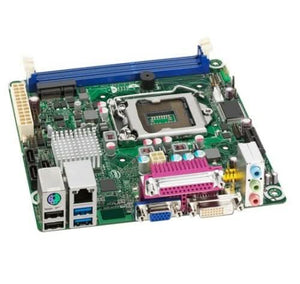

Intel BLKDH61DLB3 H61 Express LGA-1155 DDR3-1333MHz Mini-ITX Desktop Motherboard

Overview

Enjoy great multitasking performance in a small form factor board with the Intel Desktop Board DH61DL. It is designed to run with the 2nd generation Intel Core processor family in the LGA1155 socket. This mini-ITX board supports the latest features including USB 3.0, and dual display capabilities making it an excellent choice for an entry-level mini-ITX based system. This board offers premium features such as Intel High Definition Audio (Intel HD Audio) with 5.1 surround sound and multi-streaming capability and an integrated Intel PRO 10/100/1000 Network Connection in a low-power design. The Intel Desktop Board DH61DL is Microsoft Windows 7 Ultimate and Windows Vista Ultimate WHQL certified.



Specifications

Model Number:  BLKDH61DLB3

Brand:  Intel

Alt Part Number(s):  DH61DLB3

Product Type:  Motherboard



Technical Description

Brand:  Intel

Model:  BLKDH61DLB3

Chipset:  Intel H61 Express

Total Processor Supported:  1

Processor Socket:  Socket H2 LGA-1155

Processor Supported:  Core i5, Core i7, Core i3

64-bit Processing:  Yes

Number of Memory Slots:  2

Memory Type:  8 GB, DDR3-1333/PC3-10600, DDR3-1066/PC3-8500

Controller Type:  SATA/300

RAID Supported:  No

Onboard Video:  CPU Dependent Video

Sound Controller:  Realtek  ALC892

Audio Channels:  5.1

Gigabit Ethernet:  Yes

Number of Total Expansion Slots:  2

PCI Express Standard:  PCI Express 2.0

Total Number of PCI Express Slots:  2

Number of PCI Express x1 Slots:  1

Number of Mini PCI Slots:  1

Total Number of USB Ports:  4

Number of USB 2.0 Ports:  2

Number of USB 3.0 Ports:  2

Parallel Port:  Yes

Audio Line In:  Yes

Audio Line Out:  Yes

Microphone Port:  Yes

VGA:  Yes

DVI:  Yes

Network (RJ-45):  Yes

PS/2 Port:  Yes

Number of PS/2 Ports:  1

Number of SATA Interfaces:  3

Total Number of Onboard USB Ports:  6

Number of Onboard USB 2.0 Ports:  6

Onboard LEDs Header:  Yes

Onboard Audio Header:  Yes

Onboard S/PDIF Header:  Yes

Power Supply Supported:  ATX12V

Form Factor:  Mini ITX

Width:  6.7"

Depth:  6.7"



* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
