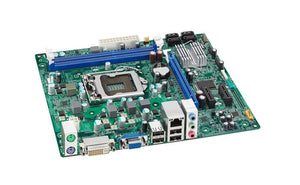

Intel BLKDH61BF Chipset-H61 LGA1155 16Gb DDR3 mATX Motherboard

Specifications

Model Number:  BLKDH61BF

Brand:  Intel

Mfr Part Number:  DH61BF

Type:  Motherboard (No accessories included)



Technical Description

Brand:  Intel

Model:  BLKDH61BF

Socket Type:  LGA 1155

CPU Type:  Core i7 / i5 / i3 / Pentium / Celeron (LGA1155)

Chipsets:  Intel H61

Memory Slots:  2×240pin

Memory Standard:  DDR3 1333/1066/800

Max Memory Supported:  16GB

Channel Supported:  Dual Channel

PCI Express 3.0 x16:  1

PCI Express x1:  2

SATA 3Gb/s:  4

Video Chipset:  Supported only by CPU with integrated graphic

Audio Channels:  6 Channels

Max LAN Speed:  10/100/1000Mbps

PS/2:  2

Video Ports:  D-Sub + DVI

USB 1.1/2.0:  4 x USB 2.0

Audio Ports:  3 Ports

Onboard USB:  2 x USB 3.0 + 10 x USB 2.0

Other Connectors:  1 x Serial Port Header

Form Factor:  Micro ATX

Dimensions:  8.86" x 7.48"

Includes:  New Motherboard (Bare board, no accessories included)



Features

Intel DH61BF. Supported memory types: DDR3-SDRAM, Memory slots type: DIMM, Memory channels support: dual. Processor family: Intel, Compatible processor series: Celeron, Core i3, Core i5, Core i7, Processor socket: LGA 1155. Audio output channels: 5.1, Audio system: HD. PCI Express slots version: 3.0. Storage temperature range (T-T): 0 - 55 degree C, Operating temperature range (T-T): -20 - 70 degree C

The latest Intel Desktop Board DH61BF brings outstanding multitasking perfomance with wupport for dual independent display with VGA and DVI-D display connectors. The DH61BF also supports Core i7 as well as all other processors in the LGA1155
