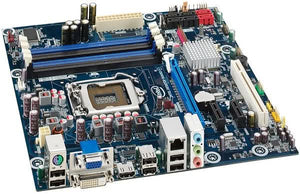

Intel BLKDH55TC Chipset-Intel H55E Socket-LGA1156 DDR3-1333MHz 24-Pin Micro-ATX Bare Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Overview
The Intel Desktop Board DH55TC is an Intel H55 Express Chipset based desktop product in uATX form factor. It offers premium features such as the support of dual-channel DDR3-1333MHz memory with four slots, Intel high definition audio with 5.1 surround sound, and integrated Intel PRO 10/100/1000 network connection in a low power design. The board is featured with VGA, DVI-D and HDMI connectors and supports dual independent display for processors with Intel Graphics technology. The board also supports legacy features like PCI slots, parallel header and serial header, and back panel PS/2 connector to create a balance of legacy and premium features.
Specifications
Mfr Part Number: BLKDH55TC
Brand: Intel
Alt Part Number: DH55TC
Type: Motherboard
Technical Description
Brand: Intel
Model: BLKDH55TC
CPU Socket Type: LGA 1156
CPU Type: Core i7 / i5 / i3 / Pentium (LGA1156)
Supported CPU Technologies: Intel Turbo Boost Technology, Intel Hyper-Threading Technology
Chipset: Intel H55
Number of Memory Slots: 4×240pin
Memory Standard: DDR3 1333/1066
Maximum Memory Supported: 16GB
Channel Supported: Dual Channel
PCI Express 2.0 x16: 1
PCI Express x1: 2
PCI Slots: 1
SATA 3Gb/s: 6 (Including two onboard eSATA ports)
Onboard Video Chipset: None
Audio Chipset: Realtek ALC888S
Audio Channels: 8 Channels
LAN Chipset: Intel 82578DC
Max LAN Speed: 10/100/1000Mbps
PS/2 Ports: 1
Video Ports: D-Sub + DVI
HDMI Ports: 1 x HDMI
USB 1.1/2.0: 6 x USB 2.0
Audio Ports: 3 Ports
Onboard USB: 6 x USB 2.0
Form Factor: Micro ATX
Power Pin: 24 Pin
Dimensions: 9.6" x 9.6"
*
