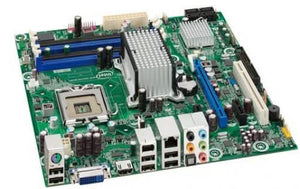

Intel BLKDG43GT Intel G43 Socket-LGA775 DDR2 Audio Video LAN Micro ATX Motherboard

Processor & Chipset

• Chipset Manufacturer:     Intel
• Chipset Model:     G43 Express
• Total Processor Supported:     1
• Processor Socket:     Socket T LGA-775
• Processor Supported:     Core 2 Quad
• Processor Supported:     Core 2 Duo
• Processor Supported:     Pentium Dual-core
• Processor Supported:     Celeron Dual-Core
• Processor Supported:     Xeon
• Processor Supported:     Pentium
• Processor Supported:     Celeron
• Front Side Bus:     1333 MHz
• Front Side Bus:     1066 MHz
• Front Side Bus:     800 MHz
• 64-bit Processing:     Yes

Memory

• Number of Memory Slots:     4
• Maximum Memory:     16 GB
• Memory Standard:     DDR2-800/PC2-6400
• Memory Standard:     DDR2-667/PC2-5300
• Memory Technology:     DDR2 SDRAM

I/O Controller

• Controller Type:     Serial ATA/300
• Controller Type:     Ultra ATA/100 (ATA-6)

Video

• Onboard Video:     On-board Video Chipset
• Graphics Controller Manufacturer:     Intel
• Graphics Controller Model:     GMA X4500

Audio

• Sound Controller Manufacturer:     Realtek
• Sound Controller Model:     ALC888S
• Audio Channels:     7.1

Network & Communication

• Gigabit Ethernet:     Yes

I/O Expansions

• Number of Total Expansion Slots:     4
• Number of PCI Slots:     1
• Total Number of PCI Express Slots:     3
• Number of PCI Express x1 Slots:     2
• Number of PCI Express x16 Slots:     1

Interfaces/Ports

• Total Number of USB Ports:     4
• Number of USB 2.0 Ports:     4
• Total Number of FireWire/i.LINK Ports:     1
• Number of FireWire/i.LINK 400 Ports:     1
• Audio Line In:     Yes
• Audio Line Out:     Yes
• Microphone Port:     Yes
• S/PDIF:     Yes
• Number of S/PDIF Out Ports:     1
• HDMI:     Yes
• Number of HDMI Outputs:     1
• DVI:     Yes
• Number of DVI Outputs:     1
• Network (RJ-45):     Yes
• PS/2 Port:     Yes
• Number of PS/2 Ports:     1

Onboard Interfaces

• Number of IDE Interfaces:     1
• Number of SATA Interfaces:     4
• Total Number of Onboard USB Ports:     3
• Total Number of Onboard FireWire/i.LINK Ports:     1
• Onboard LEDs Header:     Yes
• Onboard S/PDIF Header:     Yes

Physical Characteristics

• Form Factor:     Micro ATX
• Width:     9.6"
• Depth:     9.6"

Miscellaneous

• Package Contents:
• 10 x Classic DG43GT Desktop Board
• 10 x ATA 66/100 IDE Cable
• 20 x Serial ATA Cable
• 10 x Configuration Label
• 10 x Express Installer DVD
• 10 x DVI-to-VGA Adapter
• 10 x I/O Shield
• 1 x Quick Reference Guide
• Additional Information:

  BIOS:

• Intel BIOS (Resident in the SPI Flash Device)
• Support for Advanced Configuration and Power Interface (ACPI)
• Plug and Play
• SMBIOS
• Green Compliant:     Yes
• Green Compliance Certificate/Authority:     RoHS
• Green Compliance Certificate/Authority:     Energy Star
