Description
Explore new performance levels with the Intel Desktop Board DG41BI designed for the new DDR3 memory. This board supports the latest Intel Core processors in the LGA775 socket with affordability in mind.

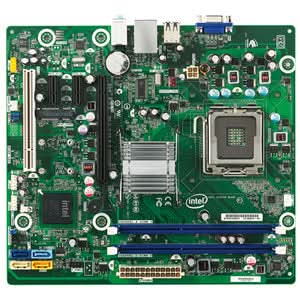

BLKDG41BI Product Overview
- Chipset Manufacturer: Intel
- Chipset Model: G41 Express
- Total Processor Supported: 1
- Processor Socket: Socket T LGA-775
- Processor Supported: Core 2 Duo
- Processor Supported: Core 2 Quad
- Processor Supported: Xeon
- Processor Supported: Xeon Quad-core
- Processor Supported: Xeon Dual-Core
- Processor Supported: Celeron
- Processor Supported: Pentium
- Front Side Bus: 1333 MHz
- Front Side Bus: 1066 MHz
- 64-bit Processing: Yes
Processor & Chipset
- Number of Memory Slots: 2
- Maximum Memory: 4 GB
- Memory Standard: DDR3-1066/PC3-8500
- Memory Standard: DDR3-800/PC3-6400
- Memory Technology: DDR3 SDRAM
Memory
- Controller Type: Serial ATA/300
I/O Controller
- Onboard Video: On-board Video Chipset
- Graphics Controller Manufacturer: Intel
- Graphics Controller Model: GMA X4500
Video
- Sound Controller Manufacturer: Realtek
- Sound Controller Model: ALC662
- Audio Channels: 5.1
Audio
- Fast Ethernet: Yes
Network & Communication
- Number of Total Expansion Slots: 5
- Number of PCI Slots: 1
- Total Number of PCI Express Slots: 3
- Number of PCI Express x1 Slots: 2
- Number of PCI Express x16 Slots: 1
- Number of Mini PCI Express Slots: 1
I/O Expansions
- Total Number of USB Ports: 4
- Number of USB 2.0 Ports: 4
- Audio Line In: Yes
- Audio Line Out: Yes
- Microphone Port: Yes
- VGA: Yes
- Network (RJ-45): Yes
Interfaces/Ports
- Number of SATA Interfaces: 4
- Total Number of Onboard USB Ports: 2
- Onboard LEDs Header: Yes
- Onboard Audio Header: Yes
- Onboard S/PDIF Header: Yes
Onboard Interfaces
- Form Factor: Micro ATX
- Width: 9.6"
- Depth: 8.6"
Physical Characteristics
