Description
Overview

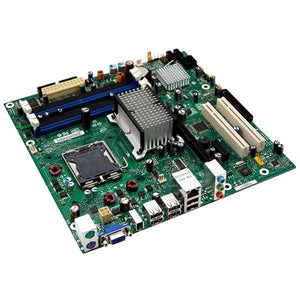

The Intel Desktop Board DG33BU Classic Series is built in the uATX form factor, supporting a range of processors including the Intel Core 2 Quad and Intel Core 2 Duo processors. This Intel Desktop Board comes with the software required to meet Intel Viiv processor technology brand verification requirements, which simplifies the task of building a PC based on Intel Core 2 Processor with Viiv Technology.
Processor & Chipset
- Chipset Manufacturer: Intel
- Chipset Model: G33 Express
- Total Processor Supported: 1
- Processor Technology: Viiv Technology
- Processor Socket: Socket T LGA-775
- Processor Supported: Core 2 Quad
- Processor Supported: Core 2 Duo
- Processor Supported: Celeron
- Front Side Bus: 1333 MHz
- Front Side Bus: 1066 MHz
- Front Side Bus: 800 MHz
- 64-bit Processing: Yes
Memory
- Number of Memory Slots: 4
- Maximum Memory: 8 GB
- Memory Standard: DDR2-800/PC2-6400
- Memory Standard: DDR2-667/PC2-5300
- Memory Technology: DDR2 SDRAM
I/O Controller
- Controller Type: Floppy Controller
- Controller Type: Serial ATA/300
- Controller Type: Ultra ATA/133 (ATA-7)
Video
- Onboard Video: On-board Video Chipset
- Graphics Controller Manufacturer: Intel
- Graphics Controller Model: GMA 3100
Audio
- Sound Controller Manufacturer: Realtek
- Sound Controller Model: ALC888
- Audio Channels: 5.1
Network & Communication
- Gigabit Ethernet: Yes
I/O Expansions
- Number of Total Expansion Slots: 4
- Number of PCI Slots: 2
- Total Number of PCI Express Slots: 2
- Number of PCI Express x1 Slots: 1
- Number of PCI Express x16 Slots: 1
Interfaces/Ports
- Total Number of USB Ports: 6
- Number of USB 2.0 Ports: 6
- Total Number of FireWire/i.LINK Ports: 1
- Number of FireWire/i.LINK 400 Ports: 1
- Audio Line In: Yes
- Audio Line Out: Yes
- Microphone Port: Yes
- VGA: Yes
- Network (RJ-45): Yes
Onboard Interfaces
- Number of IDE Interfaces: 1
- Number of SATA Interfaces: 4
- Total Number of Onboard USB Ports: 3
- Total Number of Onboard FireWire/i.LINK Ports: 1
- Onboard LEDs Header: Yes
- Onboard Audio Header: Yes
Physical Characteristics
- Form Factor: Micro ATX
- Width: 9.6"
- Depth: 9.6"
Miscellaneous
- Package Contents:
- 10 x Classic DG33FB Desktop Board
- 10 x Cable ATA 66/100 IDE
- 10 x Cable Floppy
- 20 x Cable Serial ATA
- 10 x Configuration Label
- 10 x CD Express Installer
- 10 x CD Software
- 10 x I/O Shield
- 1 x Quick Reference Poster
- 10 x Setup Guide for Intel Viiv Technology
-
Additional Information:
BIOS:
- Intel BIOS (resident in the SPI Flash device)
- Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Green Compliance Certificate/Authority: Energy Star
