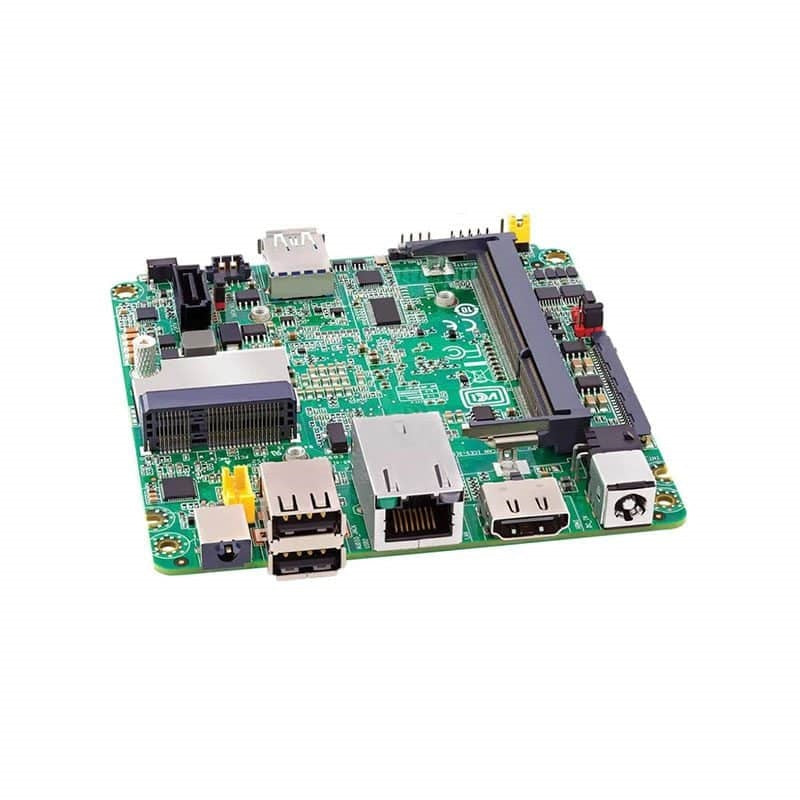

Intel BLKDE3815TYBE Atom E3815 Single Core 8Gb DDR3 Ultra Compact BARE Motherboard

Overview

The Intel® NUC Board DE3815TYBE, built with an Intel® Atom™ processor for intelligent systems, is a pint-sized powerhouse for value-conscious businesses and organizations. This low-cost, low-power solution introduces many firsts to the Intel NUC form-factor: fanless thermal solution for the ultimate silence and reliability, onboard flash storage for small-footprint software solutions, internal flat panel display connectivity for built-in screens, video graphics array (VGA) header for monitor compatibility in legacy installations, serial ports header for peripherals requiring the robustness of hardware handshaking, watchdog timer for resilient system availability, and also inter-integrated circuit (I2C) and pulse width modulation (PWM) signals for interfacing with sensors and other embedded devices enabling the Internet of Things. And with its three-year supply availability, the Intel NUC Board DE3815TYBE will be around to support long development and production ramp cycles. With its ultra small form factor design and support for Linux* and Windows* Embedded operating systems, this Intel NUC was designed as the essential building block to power the thin-client market. A fanless board with flash storage built in, and USB3 and audio headset support, this Intel NUC fits right at home in schools, call centers, and other locations with a large installed base of VGA monitors.



Specifications

Model Number:  BLKDE3815TYBE

Brand:  Intel

Alt. Part Number(s):  DE3815TYBE

Product Type:  Motherboard



Technical Description

Brand:  Intel

Model:  BLKDE3815TYBE

Chipset Manufacturer:  Intel

Onboard Video:  On-board Video Chipset

Processor Manufacturer:  Intel

Integrated Processor Type:  Atom

Integrated Processor Model:  E3815

Integrated Processor Cache:  512 KB

Integrated Processor Core:  Single-core (1 Core)

Memory Technology:  DDR3 SDRAM

Form Factor:  Ultra Compact

Maximum Memory:  8 GB

Number of Memory Slots:  1

Graphics Controller Manufacturer:  Intel

Gigabit Ethernet:  Yes

Number of SATA Interfaces:  1

Total Number of Onboard USB Ports:  3

Number of Onboard USB 2.0 Ports:  3

Controller Type:  Serial ATA

Graphics Memory Technology:  DDR3 SDRAM

Number of Mini PCI Express Slots:  1

Number of USB 2.0 Ports:  2
