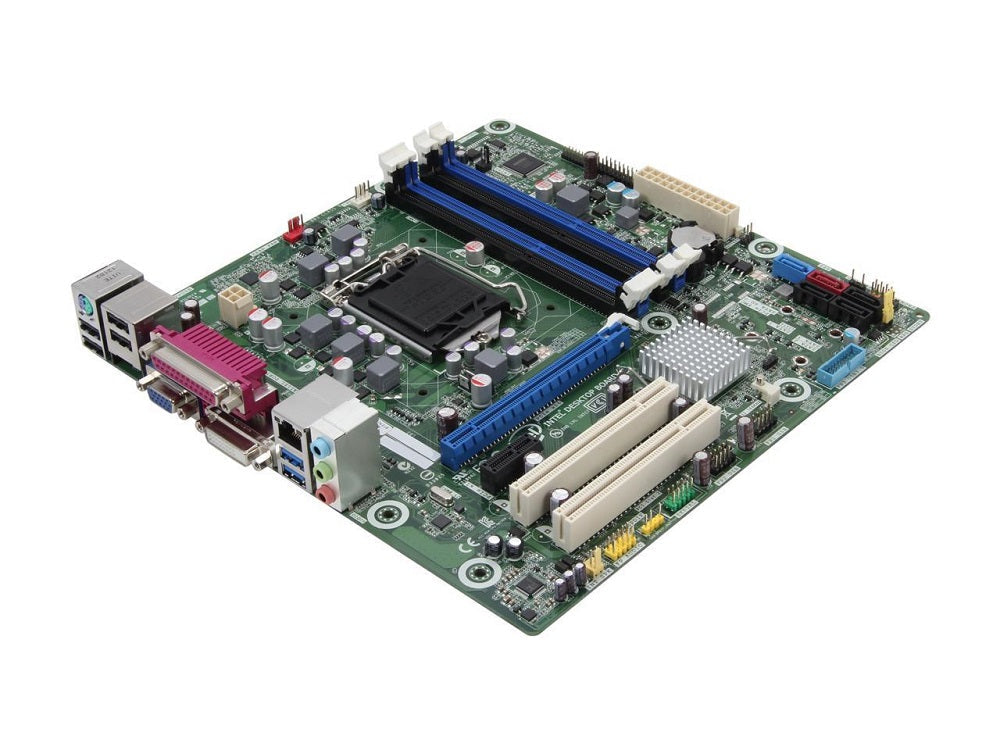

Intel BLKDB75EN Chipset-B75 Express Socket-LGA1155 32Gb DDR3-1600MHz Micro ATX Motherboard

Specifications

Mfr Part Number:  BLKDB75EN

Brand:  Intel

Model Number:  DB75EN

Type:  Motherboard

Note:  New Board With Accessories



Technical Description

Brand:  Intel

Model:  BLKDB75EN

Socket Type:  LGA1155

CUP Type:  Supports 3rd Generation Intel Core i7/ i5/ i3 Processors

Chipset:  Intel B75 Express

Memory:  4x 240pin DDR3-1600/1333 DIMM Slots, Non-ECC, Dual/Single Channel, Max Capacity up to 32GB

Slots:  1x PCI-Express 3.0 x16 Slot, 1x PCI-Express x1 Slot, 2x PCI Slots

SATA:  1x SATA3 Port, 4x SATA2 Ports

Audio:  Realtek ALC692 8-Channel High Definition Audio CODEC

LAN:  Intel 82579LM Gigabit Ethernet Controller

Ports:  8x USB 2.0 Ports (4 rear, 4 via headers), 4x USB 3.0 Ports (2 rear, 2 via header), 1x PS/2 Keyboard/Mouse Port, 1x VGA Port, 1x DVI Port, 1x Parallel Port, 1x RJ45 LAN Port, Audio I/O Jacks

Form Factor:  MicroATX

Dimensions:  9.6 x 9.6 inch / 24.38 x 24.38 cm



* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
