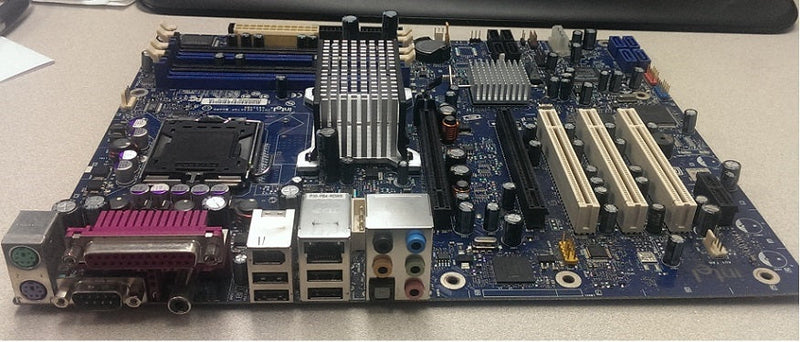

Intel BLKD955XBKLKR Chipset-Intel 955X Socket-LGA775 8Gb DDR2-667MHz ATX 24-Pin Desktop Bare Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
| Specifications | |
| Model Number | BLKD955XBKLKR |
| Brand | Intel |
| Condition | Refurbished |
| Alt. Part Number(s) | D955XBKLKR |
| Type | Motherboard Only (Accessory Not Included) |
| Technical Description | |
| Brand | Intel |
| Model | BLKD955XBKLKR |
| Socket Type | LGA 775 |
| CPU Type | Intel Pentium D / Pentium EE / Pentium 4 EE / Pentium 4 |
| FSB | 1066/800MHz |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | Intel 955X, Intel ICH7R |
| Number of Memory Slots | 4×240pin |
| Memory Standard | DDR2 667 |
| Max Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 2 |
| PCI Express x1 | 1 |
| PCI Slots | 3 |
| PATA | 1 x ATA100 2 Dev. Max |
| SATA 1.5 Gb/s | 4 |
| SATA 3Gb/s | 4 |
| SATA RAID | 0/1/0+1/5 Matrix RAID |
| Video Chipset | None |
| Audio Channels | 8 Channels |
| Max LAN Speed | 10/100/1000Mbps |
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 5 Ports |
| Onboard USB | 4 x USB 2.0 |
| Onboard 1394 | 1 x 1394a & 1 x 1394b |
| Form Factor | ATX |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |
|
* | |
