Description
Overview

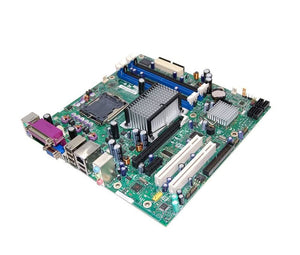

The Intel Desktop Board D946GZIS delivers an integrated graphics solution in the Essential Series by combining exceptional value with quality and reliability and supports Intel Core 2 Duo, Intel Pentium D, Intel Pentium 4, and Intel Celeron D processors with 1066/800/533 MHz system bus in the LGA775 package. This board features a PCI Express x16 connector, integrated 10/100 LAN, dual-channel DDR2 memory, Intel High Definition Audio (Intel HD Audio) and up to eight USB 2.0 ports.
Specification
Model Number: BLKD946GZISSL
Brand: Intel
Condition: OEM Board Only (Accessory Not Included)
Alt. Part Number(s): D946GZISSL
Type: Motherboard
Chipset Model: 946GZ
Total Processor Supported: 1
Processor Technology: Hyper-Threading Technology
Processor Socket: Socket T LGA-775
Processor Supported: Core 2 Duo, Pentium D, Pentium 4, Celeron D
Front Side Bus: 533 MHz, 800 MHz,1066 MHz
Number of Memory Slots: 2
Maximum Memory: 4 GB
Memory Standard: DDR2-533/PC2-4200, DDR2-667/PC2-5300, DDR2-800/PC2-6400
Memory Technology: DDR2 SDRAM
Controller Type: Floppy Controller, Serial ATA/300, Ultra ATA/100 (ATA-6)
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: Intel
Graphics Controller Model: GMA 3000
Sound Controller Manufacturer: SigmaTel
Sound Controller Model: STAC9227
Audio Channels: 5.1
Number of Total Expansion Slots: 4
Number of PCI Slots: 2
Total Number of PCI Express Slots: 2
Number of PCI Express x1 Slots: 1
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 4
Parallel Port: Yes
Serial Port: Yes
Audio Line In: Yes
Audio Line Out: Yes
Microphone Port: Yes
VGA: Yes
Network (RJ-45): Yes
Number of IDE Interfaces: 1
Number of SATA Interfaces: 4
Total Number of Onboard USB Ports: 2
Onboard LEDs Header: Yes
Onboard Audio Header: Yes
Width: 9.6"
Depth: 9.6"
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
