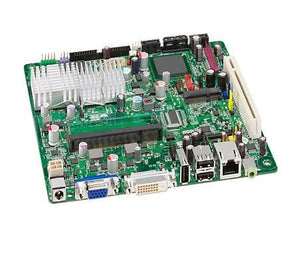

Intel D945GSEJT Intel Atom N270 PBGA437 Intel 945GSE A V LAN Mini ITX Motherboard Bare Board Only

IntelSKU: 860020
Model Number: D945GSEJT
Alt. Part Number: D945GSEJT
Condition: New
No reviews

Price:
Sale price$99.00

Description

Overview

Essential D945GSEJT Desktop Board is designed for users demanding affordable yet stylish Internet-centric computing solutions. This breakthrough platform addresses emerging slim nettops, affordable all-in-one PCs, thin/enriched-client PCs, and other usage models with its versatile, low-power, thin form factor design.

Specifications

 Model Number:  D945GSEJT

Brand:  Intel

Type:  Motherboard


Processor & Chipset

  • Chipset Manufacturer:     Intel
  • Total Processor Supported:     1
  • Processor Technology:     Hyper-Threading Technology
  • Processor Supported:     Atom
  • Front Side Bus:     533 MHz

Memory

  • Number of Memory Slots:     1
  • Maximum Memory:     2 GB
  • Memory Standard:     DDR2-667/PC2-5300
  • Memory Standard:     DDR2-533/PC2-4300
  • Memory Standard:     DDR2-800/PC2-6400
  • Memory Technology:     DDR2 SDRAM

I/O Controller

  • Controller Type:     Serial ATA/300
  • Controller Type:     Ultra ATA/100 (ATA-6)

Video

  • Onboard Video:     On-board Video Chipset
  • Graphics Controller Manufacturer:     Intel
  • Graphics Controller Model:     GMA 950

Audio

  • Sound Controller Manufacturer:     Realtek
  • Sound Controller Model:     ALC662

Network & Communication

  • Gigabit Ethernet:     Yes

I/O Expansions

  • Number of Total Expansion Slots:     2
  • Number of PCI Slots:     1
  • Number of Mini PCI Express Slots:     1

Interfaces/Ports

  • Total Number of USB Ports:     3
  • Number of USB 2.0 Ports:     3
  • Audio Line Out:     Yes
  • VGA:     Yes
  • DVI:     Yes
  • Number of DVI Outputs:     1
  • Network (RJ-45):     Yes

Onboard Interfaces

  • Number of IDE Interfaces:     1
  • Number of SATA Interfaces:     2
  • Total Number of Onboard USB Ports:     2
  • Onboard LEDs Header:     Yes
  • Onboard Audio Header:     Yes
  • Onboard S/PDIF Header:     Yes

Physical Characteristics

  • Form Factor:     Mini ITX
  • Width:     6.7"
  • Depth:     6.7"
  • System BIOS:
    Intel BIOS
    Support for Advanced Configuration and Power Interface (ACPI)
    Plug and Play
    SMBIOS

  • Green Compliant:     Yes
  • Green Compliance Certificate/Authority:     Energy Star
  • Green Compliance Certificate/Authority:     RoHS
