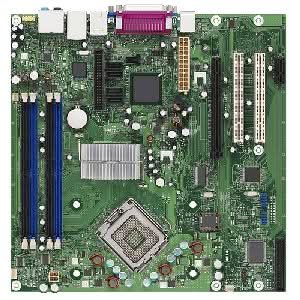

Intel BLKD945GCZLR LGA775 1066 800FSB 4DDR2 Aud Vdo Lan Micro BTX Motherboard

IntelSKU: 15965
Model Number: BLKD945GCZLR
Condition: New
No reviews

Price:
Sale price$69.00

Description

The Intel Desktop Board D945GCZ delivers new levels of performance and flexibility to the Digital Office and Digital Home. Based on the Intel 945G Express Chipset, this board supports dual-core processing, Intel EM64T and advanced Intel GMA 950 on-board or PCI Express Graphics.

BLKD945GCZLR Product Overview

    Processor & Chipset

  • Chipset Manufacturer:     Intel
  • Chipset Model:     945G
  • Total Processor Supported:     1
  • Processor Technology:     Hyper-Threading Technology
  • Processor Socket:     Socket T LGA-775
  • Processor Supported:     Pentium 4
  • Processor Supported:     Pentium D
  • Processor Supported:     Celeron D
  • Front Side Bus:     533 MHz
  • Front Side Bus:     800 MHz
  • Front Side Bus:     1066 MHz

    Memory

  • Number of Memory Slots:     4
  • Maximum Memory:     4 GB
  • Memory Standard:     DDR2-400/PC2-3200
  • Memory Standard:     DDR2-533/PC2-4200
  • Memory Standard:     DDR2-667/PC2-5300
  • Memory Technology:     DDR2 SDRAM

    I/O Controller

  • Controller Type:     Floppy Controller
  • Controller Type:     Serial ATA
  • Controller Type:     Ultra ATA/66 (ATA-5)

    Video

  • Onboard Video:     On-board Video Chipset
  • Graphics Controller Manufacturer:     Intel
  • Graphics Controller Model:     GMA 950

    Audio

  • Sound Controller Manufacturer:     SigmaTel
  • Sound Controller Model:     9223
  • Audio Channels:     7.1

    Network & Communication

  • Fast Ethernet:     Yes

    I/O Expansions

  • Number of Total Expansion Slots:     4
  • Number of PCI Slots:     3
  • Total Number of PCI Express Slots:     1
  • Number of PCI Express x16 Slots:     1

    Interfaces/Ports

  • Total Number of USB Ports:     4
  • Number of USB 2.0 Ports:     4
  • Total Number of FireWire/i.LINK Ports:     1
  • Number of FireWire/i.LINK 400 Ports:     1
  • Parallel Port:     Yes
  • Serial Port:     Yes
  • Audio Line In:     Yes
  • Audio Line Out:     Yes
  • Microphone Port:     Yes
  • S/PDIF:     Yes
  • Number of S/PDIF Out Ports:     1
  • VGA:     Yes
  • Network (RJ-45):     Yes

    Onboard Interfaces

  • Number of IDE Interfaces:     1
  • Number of SATA Interfaces:     4
  • Total Number of Onboard USB Ports:     2
  • Total Number of Onboard FireWire/i.LINK Ports:     2
  • Onboard LEDs Header:     Yes
  • Onboard Audio Header:     Yes

    Power Description

  • Power Supply Supported:     ATX12V

    Physical Characteristics

  • Width:     10.4"
  • Depth:     10.5"

    Miscellaneous

  • Package Contents:
  • 10 x D945GCZ Desktop Board
  • 10 x ATA 66/100 IDE Cable
  • 10 x Floppy Cable
  • 20 x Serial ATA Cable
  • 10 x Express Installer CD
  • 10 x Media Series Software CD
  • 10 x Configuration Label
  • 10 x Serial ATA Driver Diskette
  • 10 x I/O Shield
  • 1 x Quick Reference Guide
  • Additional Information:

    System Memory:

  • Minimum total system memory: 128 MB
  • Serial Presence Detect
  • Double-sided DIMMS with x16 organization are not supported
  • Chipset:

  • Intel 945G Chipset, consisting of:
    • Intel 82945G Graphics Memory Controller Hub (GMCH)
    • Intel 82801G I/O Controller Hub (ICH7R)

    Intel 945G Graphics Subsystem:

  • Intel GMA950 Graphics Controller
  • Dynamic Video Memory Technology (DVMT)
    • DVMT enables enhanced graphics and memory performance through Direct AGP, and highly efficient memory utilization. DVMT ensures the most efficient use of available system memory for maximum 2-D/3-D graphics performance.
  • Advanced Digital Display (ADD2/ADD2+) Card Support
    • TV-Out (composite video)
    • Transition Minimized Differential Signaling (TMDS) for DVI 1.0
    • Low Voltage Differential Signaling (LVDS)
    • Single device operating in dual channel mode
    • VGA output
    • HDTV output

    Audio Subsystem:

  • Advanced jack sense for the back panel audio jacks
  • Stereo input and output for all back panel jacks
  • Line out and Mic in functions for front panel audio jacks
  • A signal-to-noise (S/N) ratio of 95 dB
  • LAN Subsystem:

  • Physical layer interface device
  • RJ-45 LAN connector with integrated status LEDs
  • CSMA/CD protocol engine
  • Speaker:

  • The board-mounted speaker provides audible error code (beep code) information
  • Certifications & Standards:

    Safety Regulations:

  • UL 60950-1:2003/ CSA C22.2 No. 60950-1-03 (USA and Canada)
  • EN 60950-1:2002 (European Union)
  • IEC 60950-1:2001, First Edition (International)
  • EMC Regulations:

  • FCC (Class B) (USA)
  • ICES-003 (Class B) (Canada)
  • EN55022: 1998 (Class B) (European Union)
  • EN55024: 1998 (European Union)
  • AS/NZS CISPR 22 (Class B) (Australia and New Zealand)
  • CISPR 22, 3rd Edition (Class B) (International)
  • CISPR 24: 1997 (International)
  • VCCI (Class B) (Japan)

    Warranty

  • Limited Warranty:     3 Year
