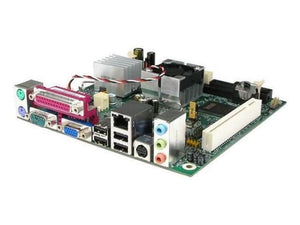

Intel BLKD945GCLF2D 945GC Express LGA-775 DDR2 SDRAM Mini-ITX CPU Motherboard

Overview

The D945GCLF2D Desktop Board is designed to support Internet-centric computing, delivering incredible capabilities in the new flexible Mini-ITX form factor. Designed with Intel's leading edge 45nm Hi-k metal gate processor, this board delivers incredible opportunities to communicate, listen, watch, play, and learn via Internet connectivity.



Specifications

Model Number:  BLKD945GCLF2D

Brand:  Intel

Alt Part Number(s):   D945GCLF2D

Product Type:  CPU Motherbpard Combo



Technical Description

Brand:  Intel

Model:  BLKD945GCLF2D / D945GCLF2D

Chipset:  Intel 945GC

Total Processor Supported:  1

Processor Supported:  Atom

Front Side Bus:  533 MHz

Number of Memory Slots:  1

Memory:  2 GB, DDR2-667/PC2-5300, DDR2-533/PC2-4200, DDR2 SDRAM

Controller Type:  Serial ATA/300, Ultra ATA/100 (ATA-6)

Onboard Video:  On-board Video Chipset

Graphics Controller:  Intel GMA 950, 224 MB

Sound Controller:  Realtek ALC662

Audio Channels:  5.1

Gigabit Ethernet:  Yes

Number of Total Expansion Slots:  1

Number of PCI Slots:  1

Total Number of USB Ports:  2

Number of USB 2.0 Ports:  2

Parallel Port:  Yes

Serial Port:  Yes

Audio Line In:  Yes

Audio Line Out:  Yes

Microphone Port:  Yes

VGA:  Yes

PS/2 Port:  Yes

Number of PS/2 Ports:  2

Number of IDE Interfaces:  1

Number of SATA Interfaces:  2

Total Number of Onboard USB Ports:  2

Onboard LEDs Header:  Yes

Onboard Audio Header:  Yes

Onboard S/PDIF Header:  Yes

Green Compliance Certificate/Authority:  RoHS, ENERGY STAR

Form Factor:  Mini ITX

Width:  6.8"

Depth:  6.8"
