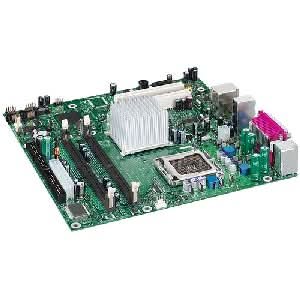

Intel BLKD910GLDWL Chip-910GL SKT-LGA775 DDR-400MHZ Dual CH A/V/L Celeron-D Micro ATX New OEM MBD

IntelSKU: 860430
Model Number: BLKD910GLDWL
Condition: New
In stock:  Yes
No reviews

Price:
Sale price$89.00

Description

The Intel Desktop Board D910GLDW based on the Intel 910GL chipset offers new and exciting features for your next value platform. The Desktop Board D910GLDW supports the Intel Celeron processor in the LGA775 package, and is designed to deliver a wide range of usage models in the consumer and corporate environment. This Intel desktop board delivers both quality and value by offering integrated features such as Intel Graphics Media Accelerator 900, PCI Express graphics, Intel High Definition Audio, and Intel PRO 10/100 LAN.

BLKD910GLDWL Product Overview

    Processor & Chipset

  • Chipset Manufacturer:     Intel
  • Chipset Model:     910GL
  • Total Processor Supported:     1
  • Processor Socket:     Socket T LGA-775
  • Processor Supported:     Celeron D
  • Front Side Bus:     533 MHz

    Memory

  • Number of Memory Slots:     2
  • Maximum Memory:     2 GB
  • Memory Standard:     DDR400/PC3200
  • Memory Standard:     DDR333/PC2700
  • Memory Technology:     DDR SDRAM

    I/O Controller

  • Controller Type:     Ultra ATA/100 (ATA-6)
  • Controller Type:     Floppy Controller
  • Controller Type:     Serial ATA/150

    Video

  • Onboard Video:     On-board Video Chipset
  • Graphics Controller Manufacturer:     Intel
  • Graphics Controller Model:     GMA 900

    Audio

  • Sound Controller Manufacturer:     Realtek
  • Sound Controller Model:     ALC860
  • Audio Channels:     5.1

    Network & Communication

  • Fast Ethernet:     Yes

    I/O Expansions

  • Number of Total Expansion Slots:     4
  • Number of PCI Slots:     2
  • Total Number of PCI Express Slots:     2
  • Number of PCI Express x1 Slots:     2

    Interfaces/Ports

  • Total Number of USB Ports:     4
  • Number of USB 2.0 Ports:     4
  • Parallel Port:     Yes
  • Serial Port:     Yes
  • Audio Line In:     Yes
  • Audio Line Out:     Yes
  • Microphone Port:     Yes
  • VGA:     Yes
  • Network (RJ-45):     Yes

    Onboard Interfaces

  • Number of IDE Interfaces:     1
  • Number of SATA Interfaces:     4
  • Total Number of Onboard USB Ports:     2
  • Onboard LEDs Header:     Yes
  • Onboard Audio Header:     Yes

    Power Description

  • Power Supply Supported:     ATX12V

    Physical Characteristics

  • Width:     9.6"
  • Depth:     9.6"

    Miscellaneous

  • Additional Information:

    System Memory:

  • Double-sided DIMMS with x16 organization are not supported.
  • Minimum total system memory: 128 MB
  • Serial Presence Detect
  • Intel 925X Chipset:

  • Intel 82910GL Graphics Memory Controller Hub (GMCH) with Direct Media Interface (DMI) interconnect
  • Intel 82801FB I/O Controller Hub (ICH6) with DMI interconnect
  • Audio Subsystem:

  • Advanced jack sense (front and rear panel) that enables the audio codec to recognize the device that is connected to an audio port. All jacks are capable of retasking according to user's definition, or can be automatically switched depending on the recognized device type.
  • Stereo input and output for all jacks
  • A signal-to-noise (S/N) ratio of 90 dB
  • LAN Subsystem:

  • RJ-45 LAN connector with integrated status LEDs
  • Basic 10/100 Ethernet LAN connectivity
  • Full device driver compatibility
  • Programmable transit threshold
  • Configuration EEPROM that contains the MAC address
  • Execute Disable Bit functionality:

  • This board supports processors (with Processor No. : 'J') which have Execute Disable Bit capability. Execute Disable Bit allows the processor to classify areas in memory by where application code can execute and where it cannot. When a malicious worm attempts to insert code in the buffer, the processor disables code execution, preventing damage or worm propagation.
