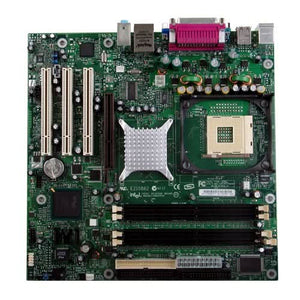

Intel Desktop Board BLKD865GLCL Socket 478 bare motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Prepare for the future with the Intel Desktop Board D865GLC, a platform that is truly a generation ahead. This ATX board features next-generation processor, dual-channel DDR400 memory support, integrated Intel Extreme Graphics 2, an AGP 8X slot, 8 USB 2.0 ports, integrated 6-channel audio and next-generation storage device support. FEATURES AND BENEFITS Support for the Intel Pentium 4 processors featuring Hyper-Threading Technology and 800-MHz system bus in the Socket 478 (mPGA478B). Also supports the Intel Pentium 4 processors (1.60a, 1.80a, 2a, 2.20 GHz or higher) with 533-MHz or 400-MHz system bus in the package. Intel 865G Chipset featuring Intel Extreme Graphics 2 using Dynamic Video Memory Technology (DVMT). Low-cost, high-performance graphics solution. Dual-Channel DDR400 SDRAM support: Four DIMM sockets designed to support up to 4 GB of DDR400 SDRAM memory (also supports DDR333 and DDR266). Flexible support for either single- or dual-channel operation. AGP 8X/4X graphics interface: Flexibility to upgrade via a high-end AGP graphics card. SATA150 and Ultra ATA100 connectors: Flexible support of new-generation SATA150 (2 ports) and current generation ATA (2 channels) storage devices. Integrated Intel 10/100/1000 CT Desktop Connection or Intel PRO 10/100 LAN (optional): On-board Gigabit Ethernet LAN connectivity using the Communication Streaming Architecture (CSA) interface or 10/100-Mbps LAN.
Processor & Chipset
- Chipset Manufacturer: Intel
- Chipset Model: 865G
- Total Processor Supported: 1
- Processor Technology: Hyper-Threading Technology
- Processor Socket: Socket 478 (mPGA478B)
- Processor Supported: Pentium 4
- Processor Supported: Celeron Dual-Core
- 64-bit Processing: Yes
Memory
- Number of Memory Slots: 4
- Maximum Memory: 4 GB
- Memory Standard: DDR400/PC3200
- Memory Standard: DDR333/PC2700
- Memory Standard: DDR266/PC2100
- Memory Technology: DDR SDRAM
I/O Controller
- Controller Type: Floppy Controller
- Controller Type: Serial ATA/150
- Controller Type: Ultra ATA/100 (ATA-6)
Video
- Onboard Video: On-board Video Chipset
- Graphics Controller Manufacturer: Intel
Audio
- Sound Controller Manufacturer: ADI
- Sound Controller Model: AD1985
- Audio Channels: 5.1
Network & Communication
- Fast Ethernet: Yes
I/O Expansions
- Number of Total Expansion Slots: 3
- Number of PCI Slots: 3
Interfaces/Ports
- Total Number of USB Ports: 8
- Number of USB 2.0 Ports: 8
- Parallel Port: Yes
- Serial Port: Yes
- Audio Line In: Yes
- Audio Line Out: Yes
- Microphone Port: Yes
- PS/2 Port: Yes
- Number of PS/2 Ports: 2
Onboard Interfaces
- Number of IDE Interfaces: 2
- Number of SATA Interfaces: 2
- Onboard LEDs Header: Yes
- Onboard Audio Header: Yes
Physical Characteristics
- Form Factor: Micro ATX
- Width: 9.6"
- Depth: 9.6"
