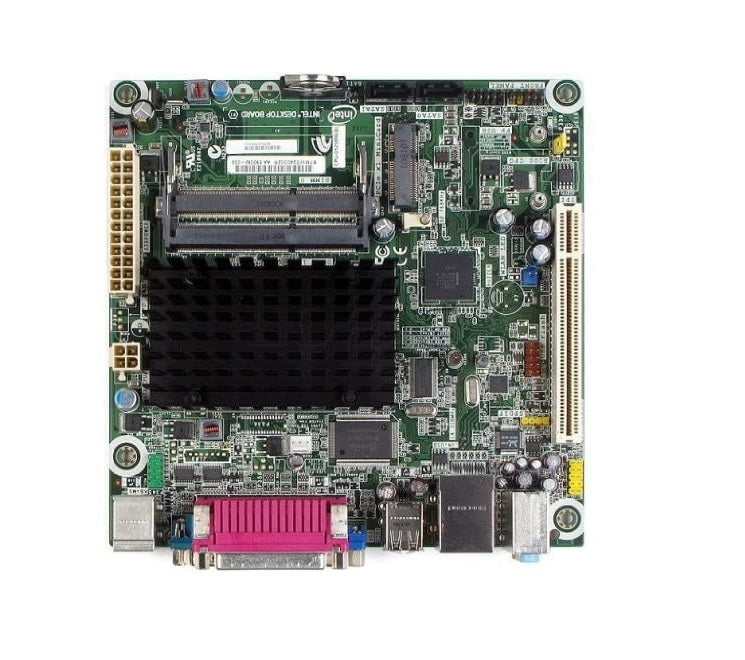

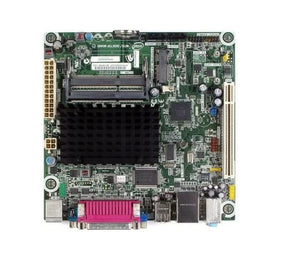

Intel BLKD525MW Atom D525 Chipset-Intel NM10 Socket-BGA559 4Gb DDR3-800MHz Mini-ITX Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
| Specifications | |
| Model Number | BLKD525MW |
| Brand | Intel |
| Condition | Refurbished Board Only (No Accessory Included) |
| Alt Part Number(s) | D525MW |
| Type | Motherboard |
| Technical Description | |
| Brand | Intel |
| Model | BLKD525MW |
| Combo Type | Motherboard/CPU Combo |
| CPU | Intel Atom D525@ 1.8GHz (Dual Core) |
| With Cooler | Yes |
| CPU Socket Type | BGA559 |
| CPU Type | Intel Atom |
| Chipsets | Intel NM10 |
| Number of Memory Slots | 2×204pin SO-DIMM |
| Memory Standard | DDR3 800 |
| Max Memory Supported | 4GB |
| PCI Slots | 1 |
| Mini Card Slots | 1 x Mini PCIe |
| SATA | 2 x SATA 3.0Gb/s |
| Onboard Video Chipset | Intel GMA 3150 |
| Audio Chipset | Realtek ALC662 |
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8111E |
| Max LAN Speed | 10/100/1000Mbps |
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 3 x USB 2.0 |
| Form Factor | Mini ITX |
| Dimensions | 6.7" x 6.7" |
* | |
