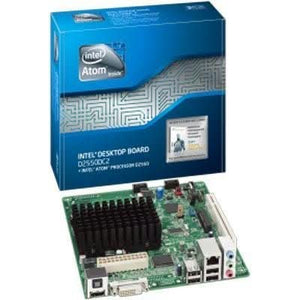

Intel BLKD2550DC2 D2550DC2 NM10-Express Chipset DDR3-1066MHz Mini-ITX Motherboard

Specifications

Mfr Part Number:  BLKD2550DC2

Brand:  Intel

Model Number:  D2550DC2

Type:  Motherboard



Technical Description

Brand:  Intel

Model:  BLKD2550DC2

CPU:  Intel® Atom™ D2550 with passive heatsink 1.86 GHz, 2 Cores / 4 Threads (Hyper-Threading Technology) 1MB Cache, 64-bit

Chipset:  Intel® NM10 Express Chipset

Memory:  2x 204-pin SODIMM sockets

Memory:  4GB capacity, DDR3-1066 / 800MHz, Non-ECC, un-buffered

Video:  Intel® Graphics Media Accelerator 3650, HDMI (1.3a w/ audio pass-through), Digital DVI (DVI-D), 1920 x 1200 @ 60Hz (WUXGA)

Audio:  Intel® HD Audio, 6-channels (5.1), Realtek ALC662 CODEC

SATA:  2x SATA 3.0Gb/s ports

LAN:  Intel® 82574L Gigabit Ethernet Controller, 10/100/1000

Expansion Slots:  1x PCI, 1x Mini PCI-Express (full height)

Power Connector:  1x 24-pin ATX

Back Panel I/O:  1x S/PDIF Optical-Out, 1x HDMI, 1x DVI-D, 4x USB 2.0, 1x Gigabit LAN port, 3x Audio I/O ports

Onboard I/O Headers:  1x 3-pin fan, 2x USB 2.0 (up to 3 ports), 1x Front-panel audio

Form Factor:  Mini ITX 170mm x 170mm (6.7" x 6.7")
