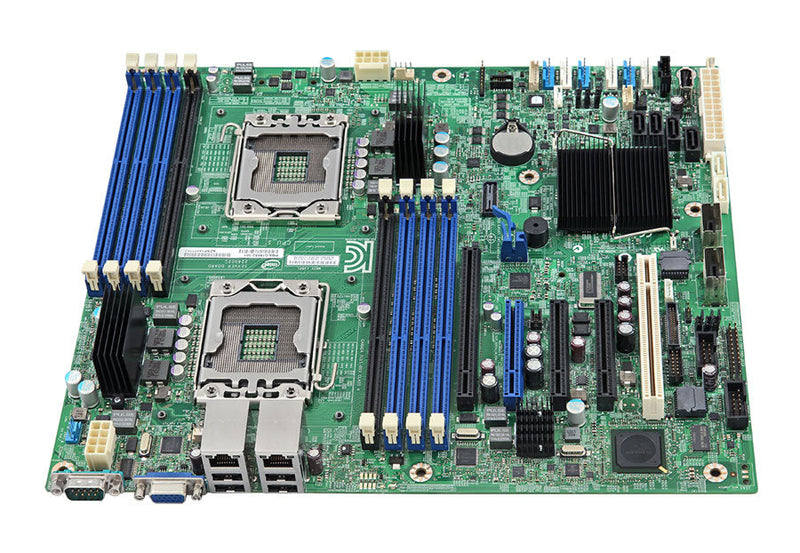

Intel BBS2400SC2 Chipset-Intel C602 LGA-1356 128Gb DDR3-1600MHz SSI CEB Server Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
| Specifications | |
| Model Number | BBS2400SC2 |
| Brand | Intel |
| Condition | Refurbished |
| Alt Part Number(s) | BBS2400SC2 |
| Type | Server Motherboard |
| Technical Description | |
| Brand | Intel |
| Model | BBS2400SC2 |
| Socket Type | Dual LGA 1356 |
| CPU Type | Dual Intel Xeon E5-2400 series (Max TDP=95W) |
| Chipsets | Intel C602 Chipset |
| Number of DDR3 Slots | 8 x 240pin |
| DDR3 Standard | DDR3/LV DDR3 ECC UDIMM 1066/1333, RDIMM/LV RDIMM 1066/1333/1600 (no LRDIMM, QRDIMM) |
| Max Memory Supported | 128GB |
| ECC Supported | Yes |
| Registered | Yes |
| PCI Express 3.0 x16 | 1 |
| PCI Express x8 | Slot 3, PCI Express Gen2 x4 (x8 connector) |
| Slot 4, PCI Express Gen3 x8 | |
| Slot 5, PCI Express Gen3 x8 | |
| PCI Slots | 1 |
| SATA | Up to eight SAS/SATA ports plus two SATA 6Gb ports and four SATA 3Gb ports via Intel C600 series chipset with Intel C600 upgrade key options |
| LAN Chipset | 2x 1GbE |
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 10/100/1000Mbps |
| COM | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Form Factor | SSI CEB |
| Dimensions | 12" x 10.5" |
* | |
