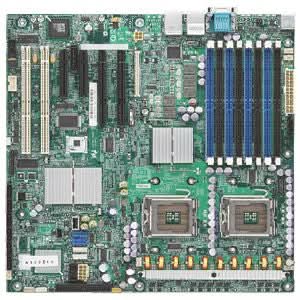

Intel BB5000PSLSATAR S5000PSL Dual LGA771 SATA-300(Raid) Video LAN SSI EEB Motherboard
Roll over image to zoom in Click on image to zoom
Intel BB5000PSLSATAR S5000PSL Dual LGA771 SATA-300(Raid) Video LAN SSI EEB Motherboard

Intel BB5000PSLSATAR S5000PSL Dual LGA771 SATA-300(Raid) Video LAN SSI EEB Motherboard

Price:
$310.00
IntelSKU: 53393
Model Number: BB5000PSLSATAR
Condition: OEM Bulk
In stock:  Yes
No reviews

For Volume / Bulk Purchase Discounts Available

Shop with confidence! Saitech Inc is an authorized Intel Partner Reseller.

Learn more by visiting the manufacturer's website.

Manufacturer's Website

Description

High performance server board for maximum reliability and manageability. Built on a powerful processor foundation, the Intel Server Board S5000PSL has the performance and features growing businesses demand. Optional hardware RAID via Intel Integrated Server RAID delivers added reliability, excellent data protection, and advanced data management. The S5000PSL optimizes performance and cost by integrating key features, and supports a variety of chassis configurations to provide maximum flexibility and scalability for growing companies.

BB5000PSLSATAR Product Overview

    Processor & Chipset

  • Chipset Manufacturer:     Intel
  • Chipset Model:     5000P
  • Total Processor Supported:     2
  • Processor Socket:     Socket J LGA-771
  • Processor Supported:     Xeon
  • Front Side Bus:     1066 MHz
  • Front Side Bus:     667 MHz
  • Front Side Bus:     1333 MHz

    Memory

  • Number of Memory Slots:     8
  • Maximum Memory:     32 GB
  • Memory Standard:     DDR2-667/PC2-5300
  • Memory Standard:     DDR2-533/PC2-4200
  • Memory Technology:     DDR2 SDRAM

    I/O Controller

  • Controller Type:     Serial ATA/300
  • Controller Type:     Ultra ATA/100 (ATA-6)

    Video

  • Onboard Video:     On-board Video Chipset
  • Graphics Controller Manufacturer:     ATI
  • Graphics Controller Model:     ES1000
  • Graphics Controller Memory:     16 MB

    Network & Communication

  • Gigabit Ethernet:     Yes

    I/O Expansions

  • Number of Total Expansion Slots:     6
  • Number of PCI-X Slots:     2
  • Total Number of PCI Express Slots:     4
  • Number of PCI Express x4 Slots:     2
  • Number of PCI Express x8 Slots:     2

    Interfaces/Ports

  • Total Number of USB Ports:     4
  • Number of USB 2.0 Ports:     4
  • Serial Port:     Yes
  • VGA:     Yes
  • Network (RJ-45):     Yes

    Onboard Interfaces

  • Number of IDE Interfaces:     1
  • Number of SATA Interfaces:     6
  • Total Number of Onboard USB Ports:     1
  • Onboard LEDs Header:     Yes

    Physical Characteristics

  • Form Factor:     SSI EEB 3.6
  • Width:     13.0"
  • Depth:     12.0"

    Miscellaneous

  • Additional Information:
  • 1 x Front Panel System ID LED

    Chipset:

  • North Bridge : Intel 5000P
  • South Bridge : ESB2-E
  • Green Compliant:     Yes
  • Green Compliance Certificate/Authority:     RoHS
