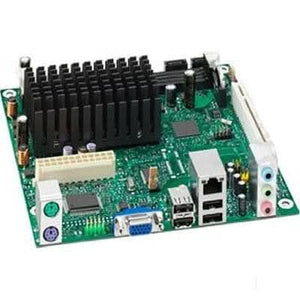

Intel Atom D410 Chipset-NM10 BGA559 DDR2 800/667 SATA-3Gb/s A/V/L Mini ITX Motherboard BLKD410PTL
Roll over image to zoom in Click on image to zoom
Intel Atom D410 Chipset-NM10 BGA559 DDR2 800/667 SATA-3Gb/s A/V/L Mini ITX Motherboard BLKD410PTL

Intel Atom D410 Chipset-NM10 BGA559 DDR2 800/667 SATA-3Gb/s A/V/L Mini ITX Motherboard BLKD410PTL

Price:
$79.00
IntelSKU: 860732
Model Number: BLKD410PTL
Condition: OEM Bulk
In stock:  Yes
No reviews

Description

Intel Desktop Board D410PT with integrated Intel Atom processor D410 and the Intel® NM10 Express Chipset enables low-power consumption and reduces the package footprint by 70 percent. With breakthrough low-power silicon, the Intel Desktop Board D410PT can also be used with a passive thermal solution based on the recommended boundary conditions.

BLKD410PTL Specifications

Processor & Chipset

  • Chipset Manufacturer:     Intel
  • Chipset Model:     NM10 Express
  • Total Processor Supported:     1
  • Processor Supported:     Atom
  • 64-bit Processing:     Yes

Memory

  • Number of Memory Slots:     2
  • Maximum Memory:     4 GB
  • Memory Standard:     DDR2-800/PC2-6400
  • Memory Standard:     DDR2-667/PC2-5300
  • Memory Technology:     DDR2 SDRAM

I/O Controller

  • Controller Type:     Serial ATA/300

Video

  • Onboard Video:     On-board Video Chipset
  • Graphics Controller Manufacturer:     Intel

Audio

  • Sound Controller Manufacturer:     Intel
  • Sound Controller Model:     ALC662
  • Audio Channels:     3.1

Network & Communication

  • Fast Ethernet:     Yes

I/O Expansions

  • Number of Total Expansion Slots:     1
  • Number of PCI Slots:     1

Interfaces/Ports

  • Total Number of USB Ports:     4
  • Number of USB 2.0 Ports:     4
  • Audio Line In:     Yes
  • Audio Line Out:     Yes
  • Microphone Port:     Yes
  • VGA:     Yes
  • Network (RJ-45):     Yes
  • PS/2 Port:     Yes
  • Number of PS/2 Ports:     2

Onboard Interfaces

  • Number of SATA Interfaces:     2
  • Total Number of Onboard USB Ports:     2
  • Onboard LEDs Header:     Yes
  • Onboard Audio Header:     Yes

Physical Characteristics

  • Form Factor:     Mini ITX
  • Width:     6.7"
  • Depth:     6.7"

Miscellaneous

  • Green Compliant:     Yes
  • Green Compliance Certificate/Authority:     RoHS
  • Green Compliance Certificate/Authority:     Energy Star
