Description

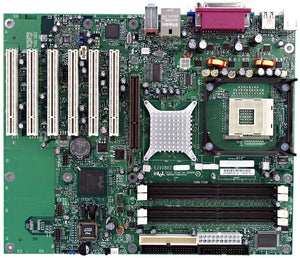

Prepare for the future with the Intel Desktop Board D865GBF, a platform that is truly a generation ahead. This ATX motherboard features next-generation processor and dual-channel DDR400 memory support, integrated Intel Extreme Graphics 2, an AGP 8X slot, 8 USB 2.0 ports, integrated 6-channel audio and next-generation storage device support.
Specifications
Processor & Chipset
- Chipset Manufacturer: Intel
- Chipset Model: 865G
- Total Processor Supported: 1
- Processor Technology: Hyper-Threading Technology
- Processor Socket: Socket PGA-478
- Processor Supported: Pentium 4 (Extreme Edition)
- Processor Supported: Pentium 4
- Processor Supported: Celeron D
- Processor Supported: Celeron
- Front Side Bus: 400 MHz
- Front Side Bus: 533 MHz
- Front Side Bus: 800 MHz
Memory
- Number of Memory Slots: 4
- Maximum Memory: 4 GB
- Memory Standard: DDR266/PC2100
- Memory Standard: DDR333/PC2700
- Memory Standard: DDR400/PC3200
- Memory Technology: DDR SDRAM
I/O Controller
- Controller Type: Floppy Controller
- Controller Type: Serial ATA/150
- Controller Type: Ultra ATA/100 (ATA-6)
Video
- Onboard Video: On-board Video Chipset
- Graphics Controller Manufacturer: Intel
- Graphics Controller Model: Extreme Graphics 2
Audio
- Sound Controller Manufacturer: Analog Devices
- Sound Controller Model: AD1985
- Audio Channels: 5.1
Network & Communication
- Fast Ethernet: Yes
I/O Expansions
- Number of Total Expansion Slots: 7
- Number of PCI Slots: 6
- Number of AGP Slots: 1
Interfaces/Ports
- Total Number of USB Ports: 4
- Number of USB 2.0 Ports: 4
- Parallel Port: Yes
- Serial Port: Yes
- Audio Line In: Yes
- Audio Line Out: Yes
- Microphone Port: Yes
- VGA: Yes
- Network (RJ-45): Yes
Onboard Interfaces
- Number of IDE Interfaces: 2
- Number of SATA Interfaces: 2
- Total Number of Onboard USB Ports: 2
- Onboard LEDs Header: Yes
- Onboard Audio Header: Yes
Power Description
- Power Supply Supported: ATX12V
Physical Characteristics
- Width: 11.6"
- Depth: 9.6"
Miscellaneous
-
Additional Information:
System Memory:
- Double-sided DIMMS with x16 organization are not supported
- Minimum total system memory: 64 MB
- Serial Presence Detect
-
Intel 865G Chipset:
- Intel 82865G Graphics and Memory Controller Hub (GMCH) with Accelerated Hub Architecture (AHA) bus
- Intel 82801EB I/O Controller Hub (ICH5) with AHA bus
-
Intel Extreme Graphics 2 Controller:
- Low-cost, high-performance graphics solution
- High performance 3-D setup and render engine
- High quality/performance texture engine
- Dynamic Video Memory Technology (DVMT) support up to 64 MB
-
Intel Precision Cooling Technology:
- Advanced management ASIC supports temperature-based fan control
- Fan speeds adjust real time according to system temperatures to help reduce unnecessary noise and energy consumption
-
Certifications & Standards:
Safety Regulations:
- UL 60950 3rd ed.,2000/CSA (USA and Canada)
- EN 60950:2000 (European Union)
- IEC 60950, 3rd Edition, 1999 (International)
-
EMC Regulations:
- FCC (Class B)(USA)
- ICES-003 (Class B) (Canada)
- EN55022: 1998 (Class B) (European Union)
- EN55024: 1998 (European Union)
- AS/NZS 3548 (Australia and New Zealand)
- CISPR 22, 3rd Edition (Class B)(International)
- CISPR 24: 1997 (International)
- Note:
- Power requirements vary
- Complies with US CRF via EN55022 +6 db in system configurations with an open chassis and EU Directive 89/336/EEC and use via EN55022 and EN50082-1 in a representative chassis
