Description
Specifications

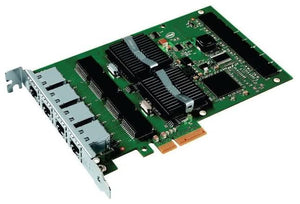

Model Number: EXPI9404PT
Brand: Intel
Condition: New OEM
Alt. Part Number(s): EXPI9404PT
Product Type: Network Server Adapter
Technical Description
Brand: Intel
Model: EXPI9404PT
Standards: IEEE802.3, IEEE802.3u, IEEE802.3ab
Speed: 10/ 100/ 1000Mbps
Connectors: 4 x RJ45
Interface: PCI-Express
LEDs: 4 (1/port, link and speed) solid and blinking
Wake On LAN: Yes
Dimensions: 5.1" x 4.8" x 0.9"
Temperature: 0–55° C
Windows Vista: Works with Windows Vista
Features
Bus type: PCI Express 1.0a
Bus width: x4 lane PCI Express, operable in x4, x8, x16 slots
Intel PROSet Utility and Intel PRO Intelligent Install for easy installation
Intel lead-free1 technology
Plug and play specification support
Auto-negotiation, full-duplex capable
Intel I/OAT2
Integrated media access control (MAC) and physical layer (PHY) Includes a full-height bracket3 (does not include a low-profile bracket)
Cable distance: 100 m in Category-5 for 100/1000 Mbps; and Category-3 for 10 Mbps
Network Management
Wired for Management (WfM) baseline v2.0 enabled for servers
DMI 2.0 support, Windows Management Instrumentation (WMI) and SNMP-manageable SMBus support
Remote Installation Services (RIS)
Diagnostics (loopback, testability PHY register access)
Advanced configuration and power interface (ACPI) 1.0 power management
Wake on LAN support over PCI Express
PXE 2.0 enabled through boot read-only memory (ROM)
Advanced Software Features
Adapter fault tolerance (AFT)
Switch fault tolerance (SFT)
Adaptive load balancing (ALB)
Teaming support: Scales up to 8 connections
Multiple teams: Supports 4 separate teams, maximum
IEEE 802.3ad (link aggregation control protocol)
Test switch configuration: Tested with major switch original equipment manufacturers (OEMs)
PCIe Hot Plug/Active peripheral component interconnect (PCI)
IEEE 802.1Q VLANs
IEEE 802.3 (z, ab, u, x) flow control support
Network Operating Systems (NOS) Software Support
Microsoft Windows Server 2003, Enterprise, Datacenter (32- and 64-bit)
Microsoft Windows 2000
Red Hat Linux 2.4x or later (32- and 64-bit)
FreeBSD 4.x or later
Novell Netware
Sun Solaris x86, OS 8 and later
SCO Open Server 5, OpenUNIX 8
