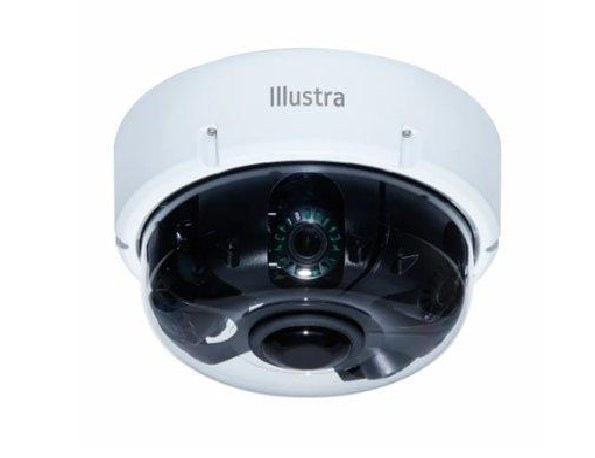

Illustra IPR20-M12-OIA4 Pro Gen4 20MP Indoor/Outdoor Multisensor Dome Camera
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Illustra Pro Gen4 IPR20-M12-OIA4 is a 20MP (5MP × 4) motorized PTRZ multisensor IP camera featuring four remotely repositionable sensors, 360° coverage, 30m IR night vision, Quad Edge AI, True WDR, motorized zoom/focus, IP66 protection, and IK10 vandal resistance.
Specifications
Model Number: IPR20-M12-OIA4
Brand: Illustra
Alt Part Number(s): IPR20-M12-OIA4
Product Type: Camera
Technical Description
Brand: Illustra
Model: IPR20-M12-OIA4
Series: Pro Gen4
Resolution: 20MP (5MP × 4)
Sensor: 4 × 1/2.8" CMOS
Lens: Motorized varifocal
Focal length: Approx. 2.7–13.5 mm
Field of View: Up to approx. 103° horizontal per sensor
Focus/Zoom: Motorized per sensor
Day/Night: True Day/Night
Video Compression: H.264 / H.265 / MJPEG / IntelliZip
I/O: 2 inputs / 2 outputs
Network: 10/100/1000 Base-T RJ-45
Storage: Quad microSDXC; encrypted edge storage
Weather Protection: IP66
Vandal Resistance: IK10
Power: 24 VAC / PoE
Form Factor: Motorized Multisensor Dome
