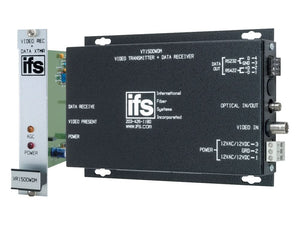

IFS Video Transmitter / Data Receiver Multimode Single Fiber 850nm VT1500WDM-R3

Overview

The IFS VT/VR1500 Series video and data transceiver supports the simultaneous transmission of video and one-way return data over one or two multimode optical fibers. The module is universally compatible with major CCTV camera manufacturers and supports RS-232 and RS-422 data interfaces and all major data protocols. Plug-and-Play design ensures ease of installation requiring no electrical or optical adjustments. The modules incorporate power, video presence, optional contact closure, data out, and AGC status indicating LEDs to monitor proper system operation. The VR1500WDM-CC features an optional contact closure input that allows an additional device such as a dome tamper switch or alarm input to be added and its signal transmitted back to the monitoring location.



Specifications

Mfr Part Number:  VT1500WDM-R3

Brand:  IFS

Model Number:  VT1500WDM-R3

Type:  Video Transmitter / Data Receiver



Technical Description

Brand:  IFS

Model:  VT1500WDM-R3

Number of Fibers:  single Fiber

Bandwidth:  5 Hz - 10 MHz

Data Interface:  RS-232, RS-422

Data Format:  NRZ, NRZI, Manchester, Bi-phase

Data Rate:  DC-100 Kbps (NRZ)

Wavelength:  850/1310nm

Connection Type:  ST

Operating Temp:  -40 C to +74 C

Storage Temp:  -40 C to +85 C

Relative Humidity:  0% to 95% (non-condensing)

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet



Features

AM Video Transmission

NTSC, PAL, SECAM Compatible

Full Color Compatibility

Supports RS-232 or RS-422 Data Interfaces

Transparent to Data Encoding/Compatible with Major CCTV Camera Manufacturers

Full Range Automatic Gain Control (AGC)

No In-field Electrical or Optical Adjustments Required

Power, Video Presence, Data Out, and AGC Status Indicating LED’s to Monitor System Performance

Integrated WDM for Greater Product Reliability

Distances up to 2.5 miles (4 km) without Repeaters

NTCIP Compatible

Hot-Swappable Rack Modules

Automatic Resettable Fuses on all Power Lines
