- Overview
Overview

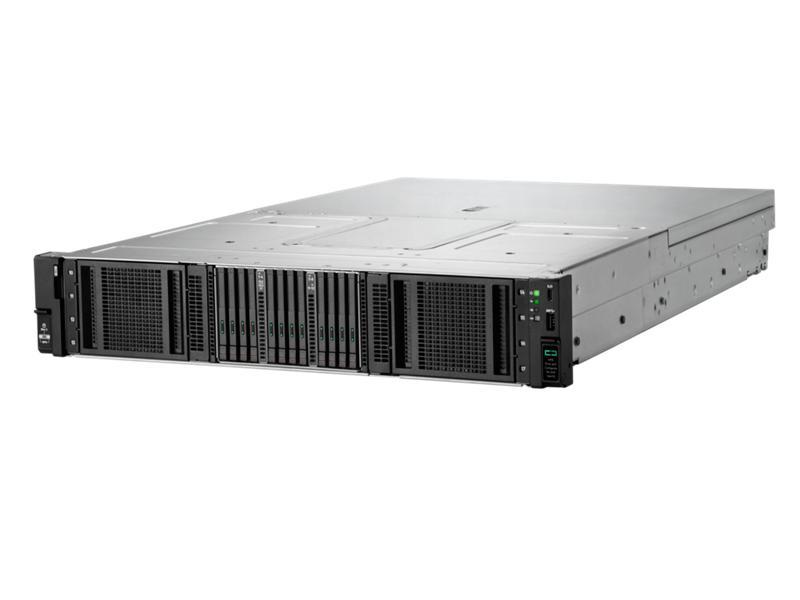

HPE P87780-005 ProLiant Compute DL340 Gen12 is a 2U server featuring an Intel Xeon 6505P 12-core processor at 2.2 GHz (4.1 GHz turbo), 64 GB DDR5 RAM at 6400 MHz, and dual 480 GB 2.5" SATA SSDs. It supports up to 4 TB of RAM across 16 slots, has redundant 1000 W 80 PLUS Titanium power supplies, and includes Gigabit Ethernet networking via a Broadcom 4-port OCP3 adapter. The server also provides up to 6 PCIe Gen5 expansion slots plus 2 OCP 3.0 slots and iLO management for remote administration.
Specifications
Model Number: P87780-005
Brand: HPE
Alt Part Number(s): P87780-005
Product Type: Server
Technical Description
Brand: HPE
Model: P87780-005
Cabinet Form Factor: 2U, GPU Server
Processor / Type: Xeon
Processor / Manufacturer: Intel
Processor / Clock Speed: 2.2 GHz
Max Turbo Frequency: 4.1 GHz
Processor / Number: 6505P
Multi-Core Technology: 12-Core
Processor / Installed Qty: 1
Cache Memory Installed Size: 48 MB
RAM / Technology: DDR5
RAM / Total Installed Size: 64 GB
RAM / Memory Speed: 6400 MHz
RAM Form Factor: RDIMM
RAM / Installed Qty: 1
RAM / Total Slots Qty: 16
RAM / Max Supported Size: 4 TB
Hard Drive / Type: SSD
Hard Drive / Size: 2.5"
Hard Drive / Interface Type: SATA 6 Gb/s
Hard Drive / Bays Qty: 8
SSD Capacity: 480 GB
SSD / Installed Qty: 2
Networking Type: Ethernet
Data Link Protocol: Gigabit Ethernet
Network Controller: Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter
Storage Controller Type: MR408i-o
Power / Device Type: Power Supply
Power / Installed Qty: 2
Power / Provided (W): 1000 Watt
80 PLUS Certification: 80 PLUS Titanium
Interfaces & Connections: iLO Service; USB 3.2; VGA; 2 USB 3.2 Gen1; iLO dedicated network
Front I/O Ports: iLO Service; USB 3.2

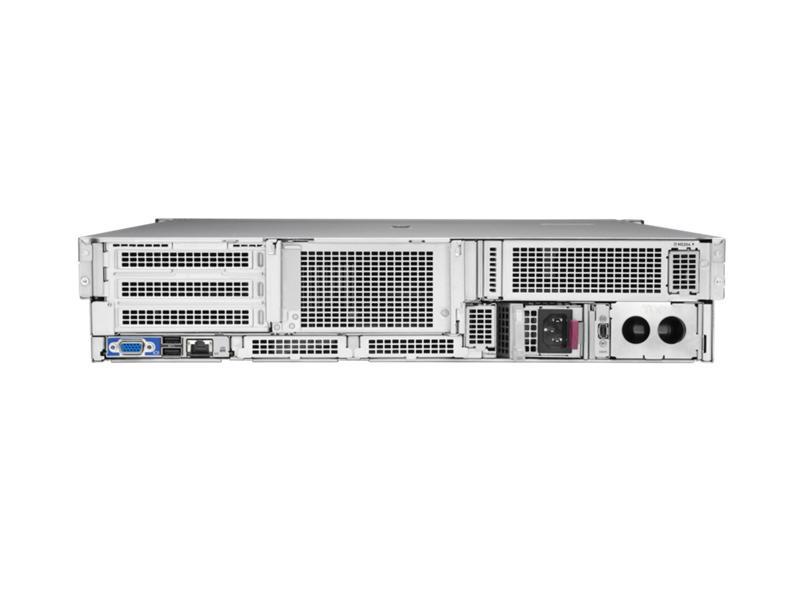

Rear I/O Ports: VGA; 2 USB 3.2 Gen1; iLO dedicated network
Expansion Slots Total (Free): Up to 6 PCIe Gen5; 2 OCP 3.0
Width: 17.64 Inch
Depth: 25.18 Inch
Height: 3.45 Inch
Service & Support Type: Three years of parts; three years of labor; three years of on-site support coverage
Min Operating Temperature: 10 Celsius
Max Operating Temperature: 35 Celsius
Humidity Range Operating: 8% to 90%
