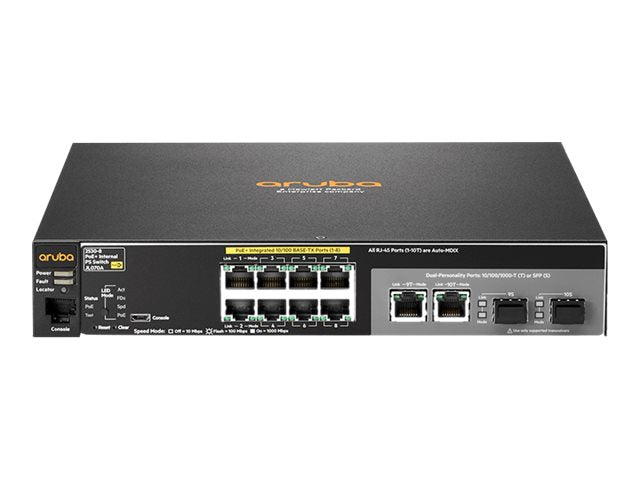

HP JL070A#ABA Aruba 2530-8 PoE+ 8-Ports 1U Rack Mount Switch
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Specifications
Model Number: JL070A#ABA
Brand: HP
Alt Part Number(s): JL070A#ABA
Product Type: Switch
Technical Description
Brand: HP
Model: JL070A#ABA
Number of Ports: 8
Ports Type: 8 x 10/100 (PoE+) + 2 x combo Gigabit Ethernet/Gigabit SFP
Processor: 1 x ARM: 800 MHz
RAM: 256 MB DDR3 SDRAM
Flash Memory: 128 MB
MAC Address Table Size: 16000 entries
Interfaces: 8 x 100Base-TX RJ-45 PoE+ 2 x Gigabit LAN SFP 1 x management RJ-45 1 x management (micro-USB) Type B
Authentication Method: RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Performance: Throughput (64-byte packet size): 4.1 Mpps Switching capacity: 5.6 Gbps
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH-2, CLI
Voltage Required: AC 120/230 V (50/60 Hz)
Power Consumption Operational: 70.2 Watt
Min Operating Temperature: 32 °F
Max Operating Temperature: 113 °F
Humidity Range Operating: 15 - 95% (non-condensing)
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Enclosure Type: Desktop, rack-mountable, wall-mountable 1U
Width: 10 in
Depth: 9.7 in
Height: 1.8 in
*
