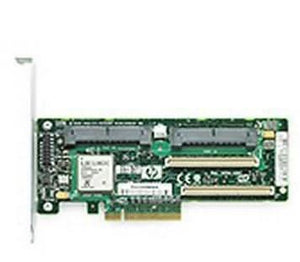

HP 411064-B21 Smart Array P400/512MB Controller WITH BBWC

The HP Smart Array P400 Serial Attached SCSI (SAS) controller provides new levels of performance and reliability for HP servers, through its support of the latest SCSI technology and advanced RAID capabilities. The SA P400 is a high-performance PCI Express (PCIe) RAID controller with 8 internal Serial Attached SCSI ports in a low-profile form factor.

	Header
	Compatibility:		PC
	Manufacturer:		HP IM Sourcing
	Model:		P400/512MB Controller with BBWC
	Packaged Quantity:		1
	Product Line:		HP Smart Array
	Interface Provided
	Connector Location:		Internal
	Connector Type:		32 pin 4i MultiLane SAS (SFF-8484)
	Interface:		Serial ATA-150 / SAS
	Qty:		2
	Type:		Storage
	Miscellaneous
	Product Type (CG):		Storage controller (RAID)
	Processor
	Clock Speed:		440 MHz
	Type:		PowerPC
	Service
	Support Details Full Contract Period:		3 years
	Support Details Service Included:		Parts
	Support Details Type:		Limited warranty
	Slot Required
	Total Qty:		1
	Type:		PCI Express x8
	Storage Controller
	Buffer Size:		512 MB
	Channel Qty:		8
	Controller Interface Type:		Serial ATA-150 / SAS
	Data Transfer Rate:		300 MBps
	Form Factor:		Plug-in card
	Interface Type:		PCI Express x8
	Max Buffer Size:		512 MB
	Max Storage Devices Qty:		18
	RAID Level:		RAID 0 , RAID 1 , RAID 10 , RAID 5 , RAID 6
	Supported Devices:		Disk array (RAID) , Hard drive
	System Requirements
	Min Operating System:		Microsoft Windows 2000 Advanced Server , Microsoft Windows 2000 Server , Microsoft Windows Server 2003 Enterprise Edition , Microsoft Windows Server 2003 Enterprise x64 Edition , Microsoft Windows Server 2003 R2 Enterprise Edition , Microsoft Windows Server 2003 R2 Enterprise x64 Edition , Microsoft Windows Server 2003 R2 Standard Edition , Microsoft Windows Server 2003 R2 Standard x64 Edition , Microsoft Windows Server 2003 Standard Edition , Microsoft Windows Server 2003 Standard x64 Edition , Microsoft Windows Server 2008 , Microsoft Windows Small Business Server 2003 , Microsoft Windows Small Business Server 2003 R2 , Novell NetWare 6.5 SP5 , Novell Open Enterprise Server , Red Hat Enterprise Linux , SCO OpenServer 5.0.7 , SCO OpenServer 6 , SunSoft Solaris 10 , SuSE Linux Enterprise Server , UnixWare 7.1.3 , UnixWare 7.1.4 , VMware ESX Server 3.0
	Power Device
	Type:		None
	Dimensions & Weight
	Depth:		6.6 in
	Height:		2.8 in
	Width:		0.7 in
	Service & Support
	Type:		3 years warranty
