The PW-Series family of access control modules are controlled by and connected to the intelligent control module, PW6K1IC or PW3K1IC, through a supervised RS485 bus at 38,400 bps. Hardware interface configuration options are stored in the intelligent control module and may be directly controlled via operator intervention, time schedules, or event-based procedures. The access modules have been designed to allow for a modular customizable solution. The PW5K1R1 provides I/O support for a single card access reader, while the PW6K1R2 supports two card access readers. In the event that communication to the intelligent control module is lost, the readers can be individually configured to allow entrance based on security needs. This customization allows for a door to be configured as locked or unlocked, or accessed only via valid facility code. The PW6K1R2 also has an RS485 serial port to facilitate communications to third party reader and field device controllers.
Model Number: PW6K1R2
Alt Part Number(s): PW6K1R2
Product Type: Reader Module Board

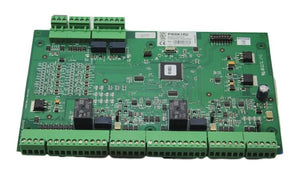

Honeywell PW6K1R2 PW-Series Pro-Watch Access Control Two Reader Module Board.
Modular design fits a wide variety of applications
User programmable relay outputs allow for specific control needs
User programmable alarm inputs offer flexible system configuration and control
RS485 communication to all modules
Dedicated cabinet tamper and power monitor inputs
Analog to digital converter technology provides digital filtering and input conditioning
Supports the choice of Normally Open/Normally Closed, supervised, and non-supervised circuits
Supports a wide range of reader technologies including Wiegand, magnetic stripe, proximity, and keypad
Up to nine modules, power supply and battery can be accommodated by the PW5K2ENC1, PW5K2ENC2, and PW5K2ENC5 enclosure
System off-line modes customizable per reader include facility code access, locked (no access), and unlocked (full access)
Supports multiple reader and card formats for maximum flexibility and security options
Operating modes include locked, unlocked, facility code, card only, card and PIN, card or PIN and PIN only
Any combination of 32 I/O or reader modules may be connected to the PW6K1IC RS485 ports. 4,000 feet / 1,250 meters total bus length per port (a max. 16 I/O or reader board may connect to the PW3K1IC)
Alarm circuit type – Normally Open/Normally Closed, nonsupervised, supervised (with correct EOL)
