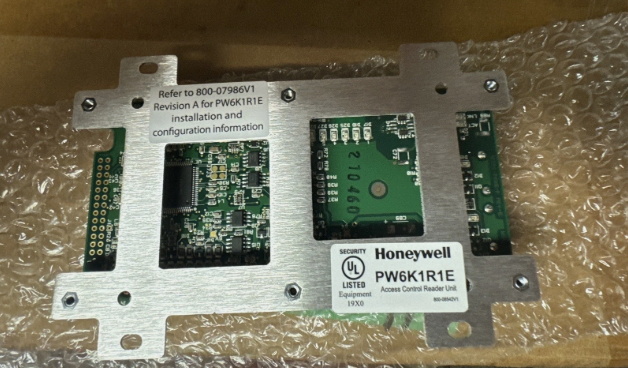

Honeywell PW6K1R1E PW6101 Single Door POE Intelligent Reader Module

Overview

The PW6101 series controller and reader module is a high performance, Ethernet ready, cost effective system capable of controlling a single opening. The controller and reader module are configurable for either Wiegand or OSDP.The PW6K1R1E single door PoE reader module supports one door with either a single reader or in/out reader configurations. It can be powered via PoE or a separate DC supply. It’s easy to position the reader module above, near or at the door. Honeywell has included support for industry-standard OSDP RS485 reader communications protocol. As an alternative to Wiegand wired readers, this protocol offers two-way communications that maintains constant contact with the reader and can easily detect tamper scenarios. Additionally, OSDP can provide capabilities including configuration of ASCII text on LCD displays and synchronization of reader clocks, depending on reader capabilities.

Specifications

Model Number:  PW6K1R1E

Brand:  Honeywell

Alt Part Number(s):  PW6K1R1E

Product Type:  Reader Module



Technical Description

Honeywell PW6K1R1E PW6101 Single Door POE Intelligent Reader Module.



Features

Powered by the network via PoE or standalone power supply

Supports one door of I/O with IN and OUT readers

PoE can power all door I/O readers, door position, request-to-exit and door strike

Sized to be mounted at the door in an appropriate enclosure

The PW6K1R1E can be linked to either a PW6K1ICE or PW6K1IC controller

Up to 16 PW6K1R1E single door PoE reader modules can be connected to a controller on the same network subnet
