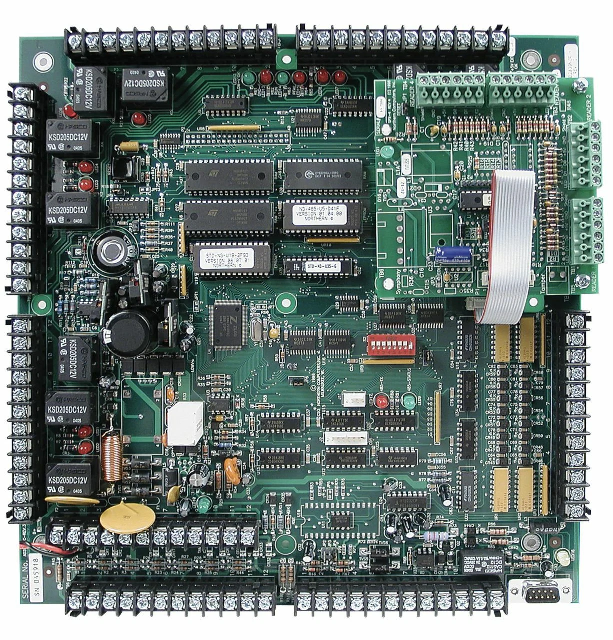

Honeywell N-1000-IV-X 4-Door 16-Supervised Inputs Access Control Panel

Overview

4 reader access control panel. Supports proximity, smart, Wiegand, magnetic stripe, keypad, barcode, vehicle ID and biometric devices. 25,000 code capacity, 6,600 buffer capacity, 8 relays (DPDT), 16 supervised alarm inputs, 20mA or RS-485 communications (RS-485 requires the use of N-485-HUB-2 or N-485-PCI-2 interfaces). Detachable terminal blocks, 12V 500mA output for external readers. Requires Enclosure, 16.5VAC transformer (X-4) or 12VDC power supply (HPS123) for panel power and one suppressor kit (S-4) per used (active) relay. Current draw is 1.8A maximum. Use with WIN-PAK software.

Specifications

Mfr Part Number:  N-1000-IV-X

Brand:  Honeywell

Model Number:  N-1000-IV-X

Type:  Access Control Panel

Technical Description

Honeywell N-1000-IV-X 4-Door 16-Supervised Inputs Access Control Panel
