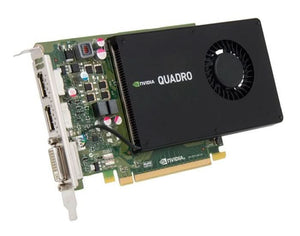

Hewlett Packard 764899-001 NVIDIA Quadro K2200 4Gb GDDR5 PCIe 2.0 Workstation Video Card

Overview

The NVIDIA Quadro K2200 delivers exceptional power-efficient 3D application performance. 4GB of GDDR5 GPU memory with fast bandwidth enables you to create large, complex models, and a flexible single-slot form factor makes it compatible with even the most space and power-constrained chassis. Plus, an all-new display engine drives up to four displays with DisplayPort 1.2 support for ultra-high resolutions up to 3840 x 2160 @ 60Hz with 30-bit color. Quadro cards are certified with a broad range of sophisticated professional applications, tested by leading workstation manufacturers, and backed by a global team of support specialists, giving you the peace of mind to focus on doing your best work. Whether you’re developing revolutionary products or telling spectacularly vivid visual stories, Quadro gives you the performance to do it brilliantly.



Specifications

Model Number:  764899-001

Brand:  Hewlett Packard

Alt Part Number(s):  764899-001

Product Type:  Workstation Video Card

Technical Description

Brand:  Hewlett Packard

Model:  764899-001

Interface:  PCI Express 2.0 x16

Chipset Manufacturer:  NVIDIA

GPU:  Quadro K2200

CUDA Cores:  640

Memory Size:  4GB

Memory Interface:  128-bit

Memory Type:  GDDR5

DirectX:  DirectX 11

OpenGL:  OpenGL 4.4

DisplayPort:  4

DVI Port:  1 x DL DVI-D

Maximum DP 1.2 Resolution:  3840 x 2160 at 60Hz (direct connect)

Maximum DVI-I DL Resolution:  2560 x 1600 at 60Hz

Maximum DVI-I SL Resolution:  1920 x 1200 at 60Hz

Maximum VGA Resolution:  2048 x 1536 at 85Hz

Max Displays Per Board:  4

Cooler:  Ultra-quiet active fansink

Dual-Link DVI Supported:  Yes

HDCP Ready:  Yes

Operating Systems Supported:  Microsoft Windows 8.1, 8, 7, Vista, Linux, or Solaris

Form Factor:  Plug-in Card

Dimensions (L x H):  7.97" x 4.38"

Slot Width:  Single Slot

Electrical Outlet Plug Type:  Plug Type “A” (USA, Canada, Mexico, Japan)



Features

Two DisplayPort 1.2 Connectors

DisplayPort with Audio

DVI-I Dual-Link Connector

VGA Support

NVIDIA nView Desktop Management Software Compatibility

HDCP Support

NVIDIA Mosaic



* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
