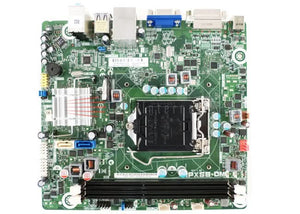

Hewlett Packard 691719-001 Chipset-Intel H61 Socket-LGA1155 DDR3-1333Mhz Mini-ITX Motherboard

Specifications

Mfr Part Number:  691719-001

Brand:  Hewlett Packard

Model Number:  691719-001

Type:  Motherboard



Technical Description

Brand:  Hewlett Packard

Model:  691719-001

Manufacturer name:  Pegatron

HP/Compaq name:  Cork2

Form Factor:  Mini-ITX

Dimensions:  17 cm (6.7 inches) x 19 cm (7.5 inches)

Chipset:  Intel H61

Socket type:  LGA 1155

Memory Type:  Two 240-pin DDR3 UDIMM sockets 1333MHz

Video:  Intel PCH Integrated Graphics

Audio:  Integrated Realtek ALC662 Audio

LAN:  10-Base-T

Network Technology:  Atheros AR8152 Ethernet controller

I/O Ports:  1 - DC power, 2 - DVI-D port, 3 - VGA port, 4 - LAN, 5 - USB 2.0: 4, 6 - Audio: Line in, 7 - Audio: Line out, 8 - Audio: Microphone

Internal Connectors:  1x CPU fan, 1x System fan, 2x SATA, 2x SATA power, 2x USB 2.0, 1x Front panel audio, 1x ROM recovery, 1x Front panel
