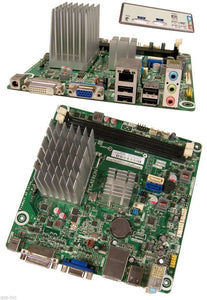

Hewlett Packard 658566-001 Chipset-AMD Hudson-D1 FCH DDR3-1066MHz Mini-ITX Motherboard

Specifications

Mfr Part Number:  658566-001

Brand:  Hewlett Packard

Model Number:  658566-001

Type:  Motherboard



Technical Description

Brand:  Hewlett Packard

Model:  658566-001

Manufacturer Name:  Pegatron

HP/Compaq name:  Bluewood4/Bluewood4L

Form Factor:  Mini-ITX

Dimensions:  17 cm (6.7 inches) x 17 cm (6.7 inches)

Chipset:  AMD Hudson-D1 FCH

Bus Speed:  4 lanes, 2.5 GT/s per lane

Socket Type:  Not applicable

Memory Type:  Two 240-pin DDR3 UDIMM sockets 1066MHz

Video:  Integrated graphics: Radeon HD 6320

Audio:  Integrated Realtek ALC662 Audio

LAN:  10-Base-T

Network Technology:  Atheros AR8152

I/O Ports:  1 - DC input power, 2 - DVI, 3 - VGA, 4 - LAN, 5 - USB 2.0: 4, 6 - Audio: Line in, 7 - Audio: Line out, 8 - Audio: Microphone

Internal Connectors:  1x CPU fan connector, 2x SATA connectors 2.0, 1x SATA power connector, 1x Front panel audio connector, 1x Front panel connector, 4x USB 2.0 connectors
