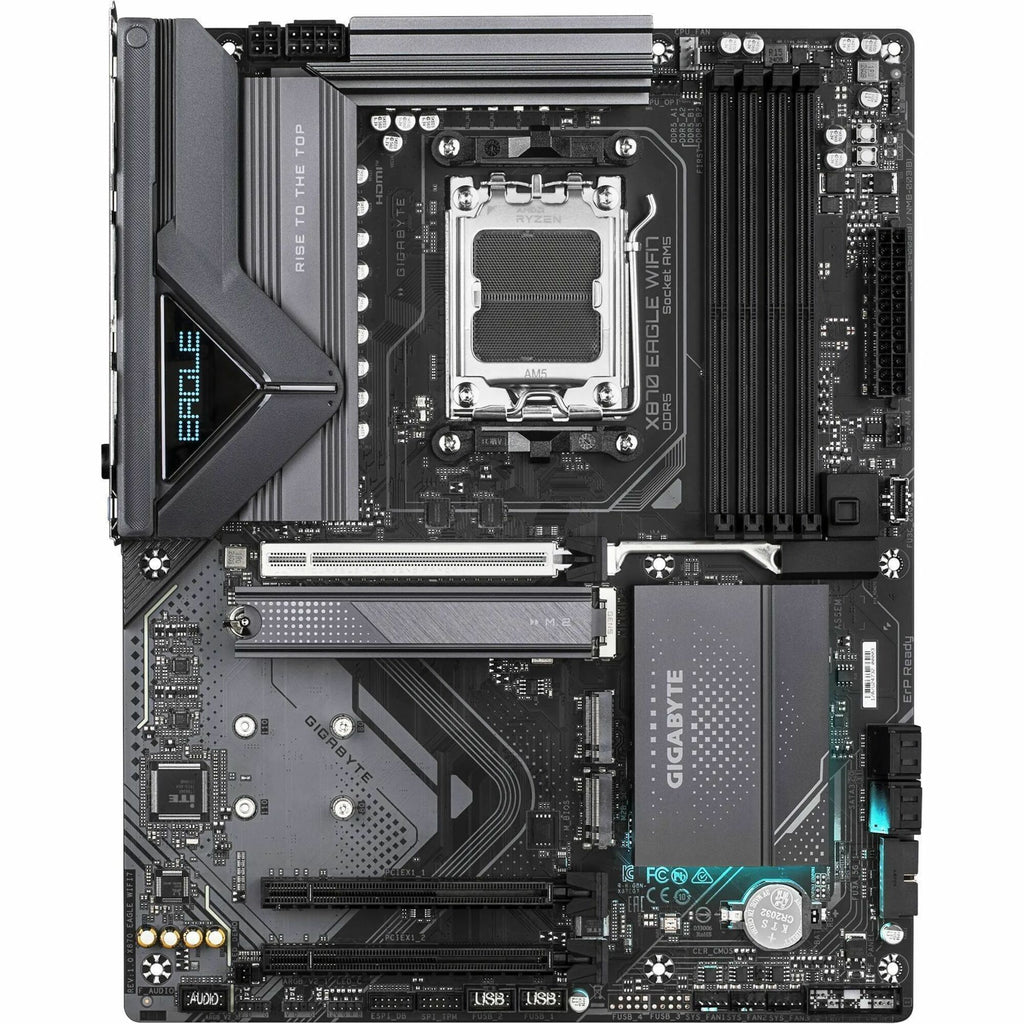

Gigabyte X870 EAGLE WIFI7 256GB DDR5 Socket AM5 Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Gigabyte X870 EAGLE WIFI7 X870 Series is an ATX motherboard featuring the AMD X870 chipset, Socket AM5 support for Ryzen 5, Ryzen 7, and Ryzen 9 processors, up to 256 GB of DDR5 memory, PCI Express 5.0 expansion, WiFi 7, Bluetooth 5.4, and three M.2 interfaces with four SATA ports for high speed storage. It is designed for high performance desktop systems with AI-powered features, 2.5 Gigabit Ethernet, 7.1 channel audio, ECC memory support, RAID capability, and extensive USB connectivity.
Specifications
Model Number: X870 EAGLE WIFI7
Brand: Gigabyte
Alt Part Number(s): X870 EAGLE WIFI7
Product Type: Motherboard
Technical Description
Brand: Gigabyte
Model Number: X870 EAGLE WIFI7
AI-powered: Yes
Chipset Manufacturer: AMD
Chipset Model: X870
Total Processor Supported: 1
Processor Socket: Socket AM5
Processor Supported: Ryzen 5; Ryzen 7; Ryzen 9
Number of Memory Slots: 4
Memory Form Factor: DIMM; UDIMM
Maximum Memory Supported: 256 GB
Memory Technology: DDR5 SDRAM
Memory Speed Supported: 8000 MHz; 7800 MHz; 7600 MHz; 7200 MHz; 7000 MHz; 6800 MHz; 6666 MHz; 6600 MHz; 6400 MHz; 6200 MHz; 6000 MHz; 5600 MHz; 5200 MHz; 4800 MHz; 4400 MHz
Error Checking: ECC
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0; 1; 10
Onboard Video: CPU Dependent Video
Graphics Controller Model: Radeon Graphics
Audio Channels: 7.1
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.4
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax/be
Total Number of Expansion Slots: 3
PCI Express Standard: PCI Express 3.0; PCI Express 4.0; PCI Express 5.0
Total Number of PCI Express Slots: 3
Number of PCI Express x16 Slots: 3
Total Number of USB Ports: 10
Number of USB 2.0 Ports: 4
Number of USB 3.2 Gen 1 Ports: 3
Number of USB 3.2 Gen 2 Type-A Ports: 1
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 3
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Form Factor: ATX
Width: 12"
Depth: 9.6"
