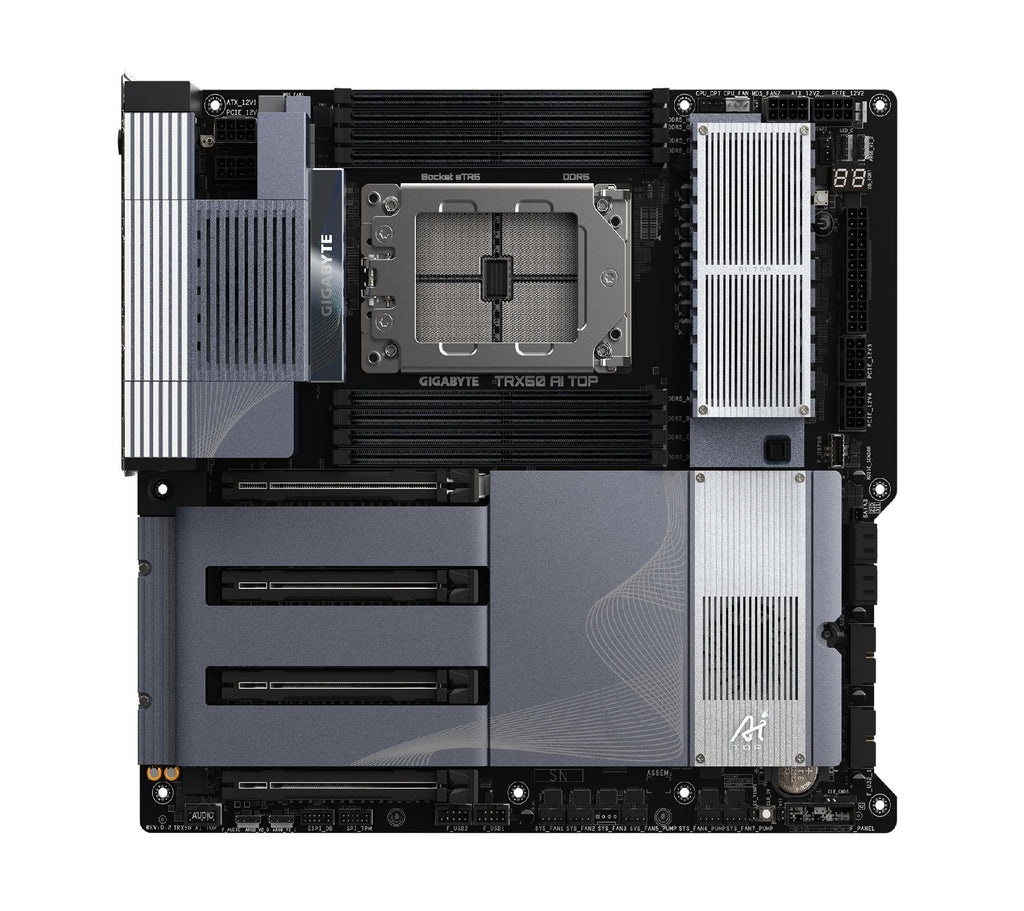

Gigabyte TRX50 AI TOP-2B AMD sTR5 DDR5 E-ATX AI Workstation Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
The Gigabyte TRX50 AI TOP-2B is a high-end workstation motherboard designed for AI development, machine learning, multi-GPU computing, 3D rendering and professional content creation
Specifications
Model Number: TRX50 AI TOP-2B
Brand: Gigabyte
Alt Part Number(s): TRX50 AI TOP-2B
Product Type: Motherboard
Technical Description
Brand: Gigabyte
Model Number: TRX50 AI TOP-2B
Supported Processors: AMD Ryzen Threadripper 7000/9000 series and Threadripper PRO 7000-WX/9000-WX series, subject to CPU support list and BIOS
CPU Socket: AMD sTR5
Chipset: AMD TRX50
Maximum Memory: Up to 2TB
Memory Type: DDR5 ECC Registered DIMM (RDIMM/RDIMM-3DS)
Memory Slots: 8 × DDR5 DIMM
Memory Channels: Up to 8-channel with supported Threadripper PRO processors; 4-channel with standard Threadripper processors
Operating Systems: Windows 11 64-bit, Ubuntu 24.04 LTS
PCIe Expansion: 4 × physical PCIe x16 slots
M.2 storage: 4 × M.2 sockets
SATA Storage: 4 × SATA 6Gb/s
NVMe RAID: RAID 0, 1, 10
SATA RAID: RAID 0, 1
USB4: 2 × USB-C, up to 40Gbps
Rear USB Type-A: 6 × USB 3.2 Gen 2
Front USB-C: USB 3.2 Gen 2x2, up to 20Gbps
Ethernet: 2 × Marvell AQtion 10GbE LAN
Wireless: Wi-Fi 7
Bluetooth: 5.3
Audio: Realtek ALC4080 rear / ALC897 front; DTS:X Ultra
Display Connection: DisplayPort input
Main Power: 1 × 24-pin ATX
CPU Power: 2 × 8-pin ATX 12V
Additional Power: 4 × PCIe power connectors
Cooling: CPU fan, system fan and water-pump headers
Form Factor: E-ATX
