Description
Overview

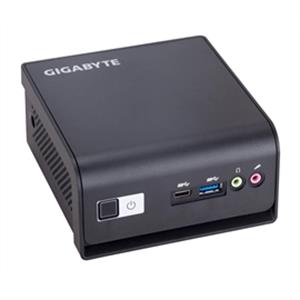

The GB-BMCE-4500C is an ultra-compact, fanless mini-PC powered by a 6W Intel® Celeron® N4500 processor built on 10nm architecture. With a space-saving 0.67L design, it supports both M.2 SSDs and 2.5" SATA drives, up to 16GB DDR4 memory, and features dual 4K display output via HDMI 2.0b and MiniDP 1.4. It offers Gigabit LAN, dual-band Wi-Fi, Bluetooth 4.2, USB 3.1 ports (including USB-C), and VESA mounting support—ideal for silent, efficient performance in tight spaces.
Specifications
Model Number: GB-BMCE-4500C
Brand: Gigabyte
Alt Part Number(s): GB-BMCE-4500C
Product Type: Barebone Systems
Technical Description
Brand: Gigabyte
Model: GB-BMCE-4500C
Motherboard Size: 105 x 110 mm
CPU: Intel Celeron Processor N4500, 2.8 GHz, 2 cores (TDP 6W)
Memory: 1 x SO-DIMM DDR4 slot, 2933 MHz, max 16GB
LAN: Gigabit LAN (Realtek 8111HS)
Wi-Fi: Dual Band Wireless – 802.11ac
Graphics: Intel UHD Graphics 605
Audio: Realtek ALC255
HDMI Resolution (Max): HDMI 2.0b, supports 4K at 60Hz HDR10
Mini DP Resolution (Max): DP 1.4, supports 4K at 60Hz HBR2
Storage: Supports 2.5" HDD/SSD (7.0/9.5 mm) via 6 Gbps SATA 3
Expansion Slots:
1 x M.2 2280 slot (PCIe x2/SATA)
1 x M.2 2230 A-E key slot (occupied by Wi-Fi + BT card)
Front I/O:
1 x USB 3.0
1 x USB 3.0 Type-C
1 x Headphone jack
1 x Microphone jack
Rear I/O:
1 x HDMI 2.0a
1 x Mini DisplayPort 1.2a
2 x USB 3.0
1 x RJ45
1 x DC-In
1 x Kensington lock slot
Power Supply: Input: AC 100–240V, Output: DC 19V/3.42A, 65W
VESA Support: Bracket included; supports 75 x 75 mm and 100 x 100 mm
Supported OS: Windows 10 64-bit
Operating Temperature: 0°C to +35°C
Storage Temperature: -20°C to +60°C
Boost your enterprise performance with the Gigabyte GB-BMCE-4500C Celeron N4500 Barebone Mini PC—ORDER TODAY!
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
